Fujitsu Amilo L7300 laptop schematic diagram, PS3

The motherboard schematic diagram(pdf) for Fujitsu AMILO L7300 laptop/notebook.
CUP: Intel Banias Celeron
North Bridge: VIA PN800
South Bridge: VT8235CE
OEM: FIC International Computer, Inc.
Title: PS3 (PN800 + VT8235CE)
Project: PS3
Board name: Mother Board Schematic
Version: 0.4
Initial Date : January 19 , 2004
Format: PDF
Total Pages: 59
File size: 1.38MB
Language: English
Sale Price: 7.5$

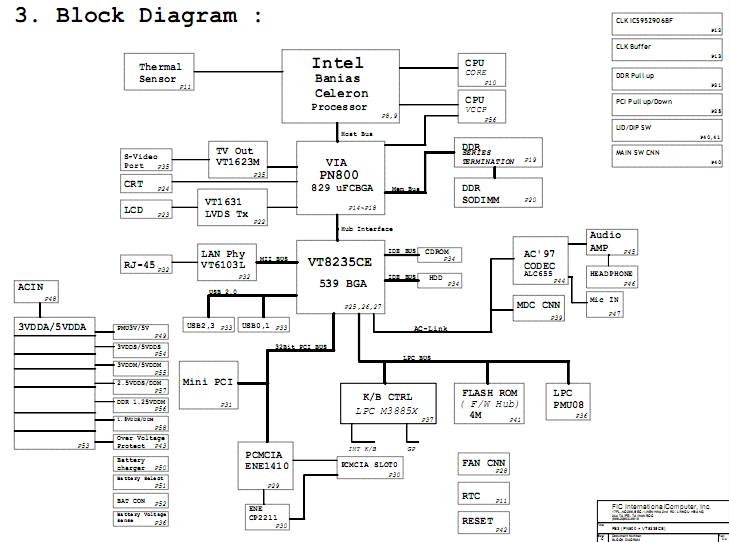

Fujitsu L7300 Block Diagram:

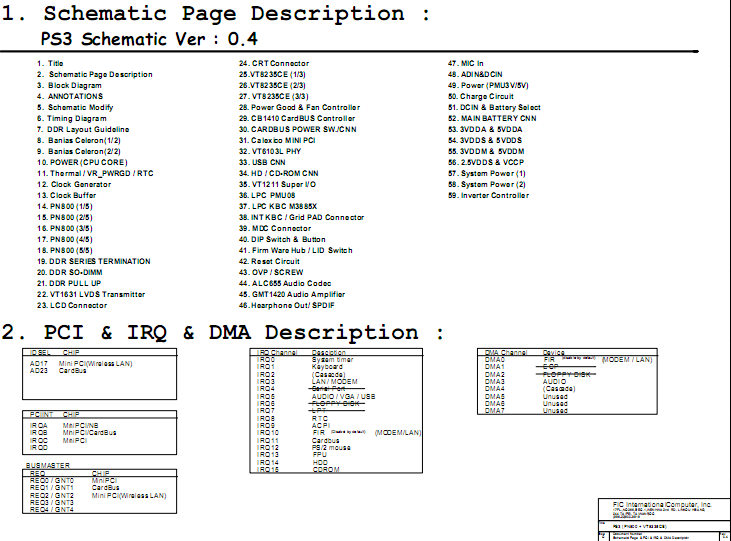

Schematic Page Description:
