Fujitsu Amilo Pi 3560 Pi 3660 schematic, EF7 Mainboard

The motherboard schematic for Fujitsu Amilo Pi3560, Fujitsu Amilo Pi3660 laptop/notebook, Quanta EF7/9A Mainboard
CPU: Penryn
North Bridge: Cantiga PM45 + VGA nVidia N10P-GS
South Bridge: ICH-9M
OEM: QUANTA COMPUTER
PROJECT: EF7/9A
Rev: 1A
Format: PDF
Total Pages: 45
File size: 1.51MB
Price: $12.5

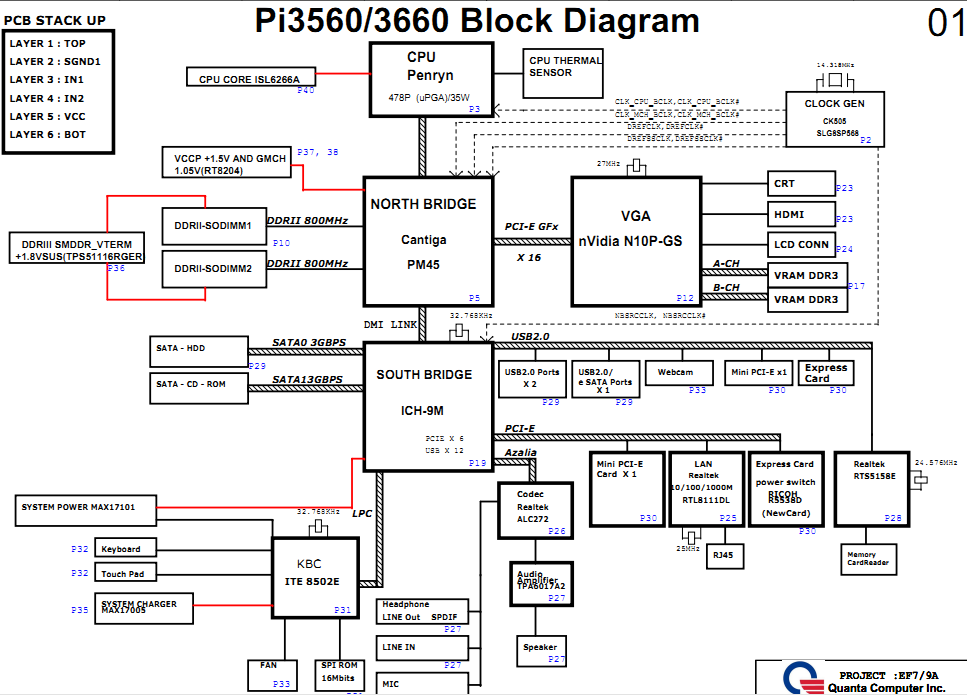

Fujitsu Amilo Pi 3560/Pi 3660 Block Diagram:
