Fujitsu LifeBook S2110 schematic, VB222AA

The schematic diagram for Fujitsu LifeBook S2110 laptop/notebook.
CPU: Mobile Athlon64 (K8,Hammer)
North Bridge: RS480M
South Bridge: SB400
OEM: FUJITSU LTD.
Title: VB222AA
DRAW. No. : C1CP231360-X3
Format: PDF
Total Pages: 99
File size: 1.86MB
Sale Price: 8.5$

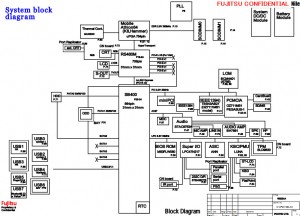

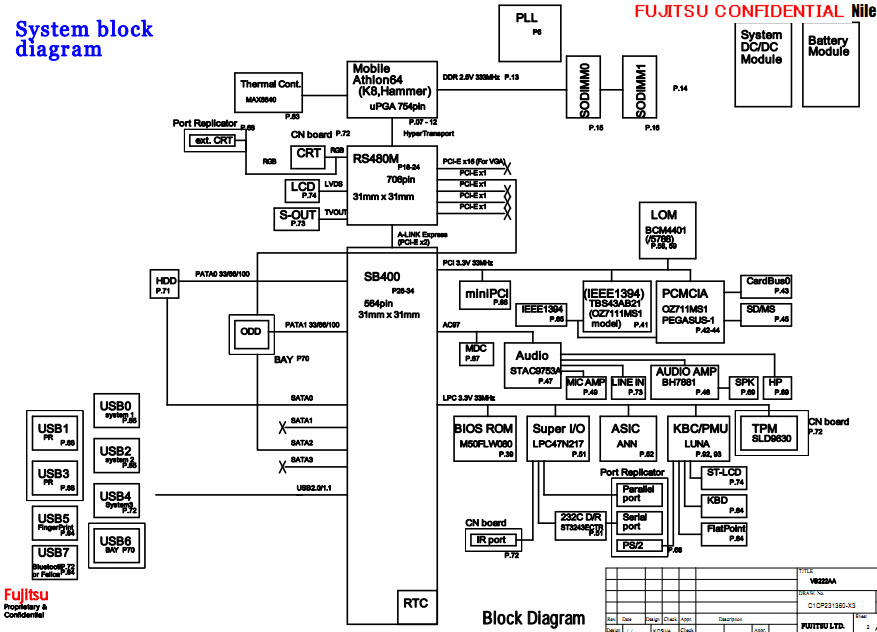

Fujitsu LifeBook S2110 Block Diagram:
