Gateway M210 series schematic, PA1

The motherboard schematic for Gateway M210 Series laptop/notebook, Quanta PA1.
CPU: NWD/PRESCOTT
North Bridge: SPRINGDALE-PE
South Bridge: ICH5
OEM: Quanta Computer Inc.
PROJECT: PA1
Document Number: PA1
Format: PDF
Total Pages: 41
Sale Price: 7.5$

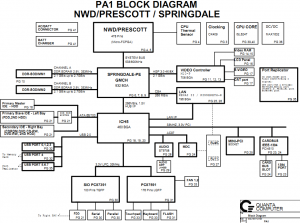

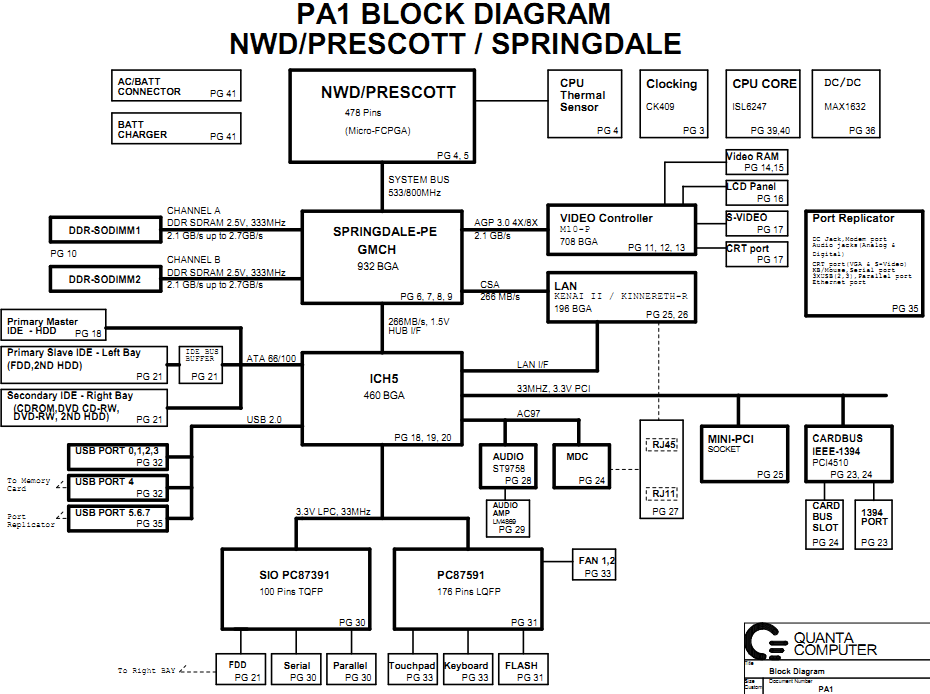

Gateway M210 Block Diagram:
