Gateway MX6453 MX6454 MX6448 MT6452 schematic, MA3

The motherboard schematic for Gateway MX6453, Gateway MX6454, Gateway 6448, Gateway MT6452 laptop/notebook, Quanta MA3.
CPU: AMD Athlon 64 & Sempron
North Bridge: RS480M/RS482M
South Bridge: IXP400
OEM: Quanta Computer Inc.
PROJECT: MA3
Format: PDF
Total Pages: 37
Sale Price: 9.5$

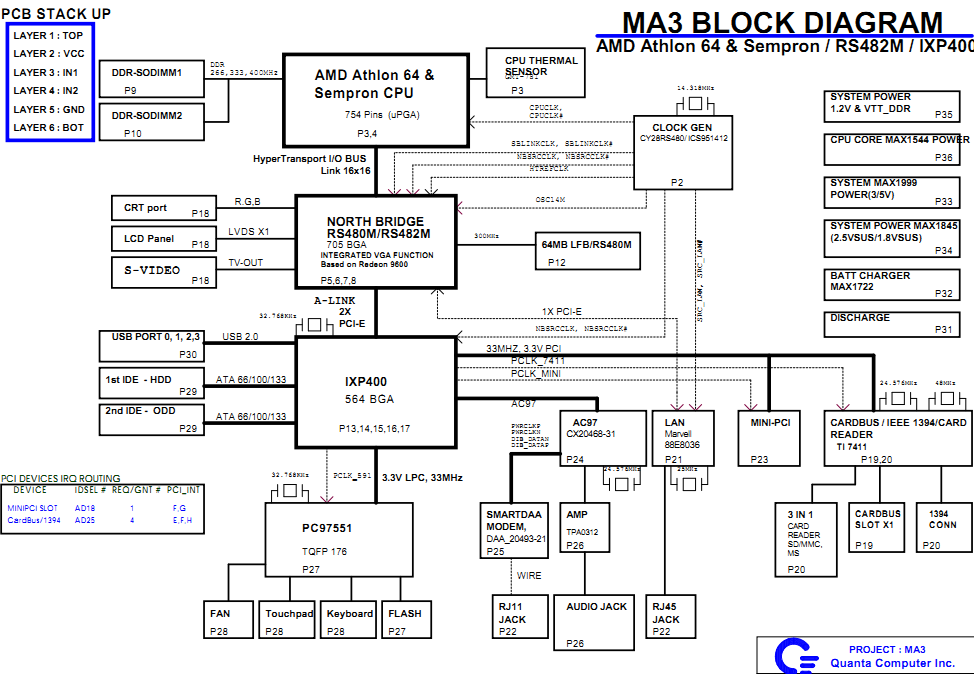

Gateway MX6453 MX6454 MX6448 Block Diagram:
