Gateway NS41/NS41G, Acer TravelMate 8427 schematic, ZQ3

The motherboard schematic for Gateway NS41/NS41G, Acer TravelMate 8427 laptop/notebook, Quanta ZQ3.
CPU: Arrandale (SG) + N11M 512MB/N11P 1GB
Chipset: Ibex Peak_M
OEM: Quanta Computer Inc.
Project: ZQ3
Rev: 1A
Format: PDF
Total Pages: 47
Sale Price: 12.5$

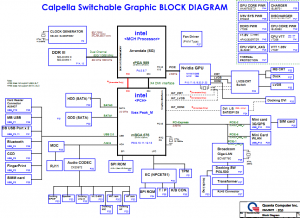

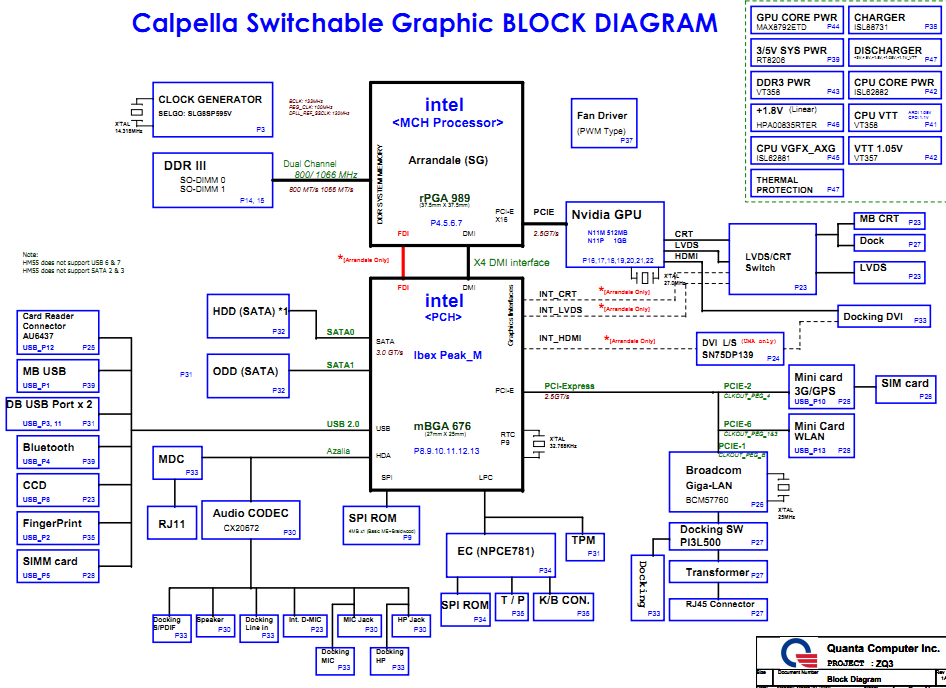

Gateway NS41, Acer TM8427 Block Diagram:
