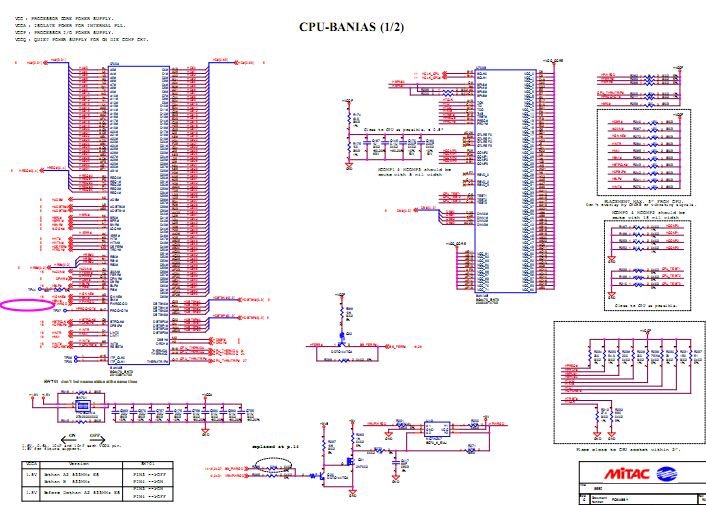

Hasee V700C 700S (MATIC 8650) schematic diagram

The motherboard schematic diagram for Hasee V700C and Hasee 700S laptop/notebook, MATIC 8650.
CPU: Intel Celeron-M/Pentium-M
North Bridge: VIA PN800
South Bridge: VIA VT8235CE
OEM: MITAC
Title: 8650
PROJECT CODE: G226
PRODUCT CODE: 8028
PCB P/N: 316802800001
ASSY P/N: 411802800001
Format: PDF
Total Pages: 34
Total Files size: 957KB
Language: English
Sale Price: 6.5$

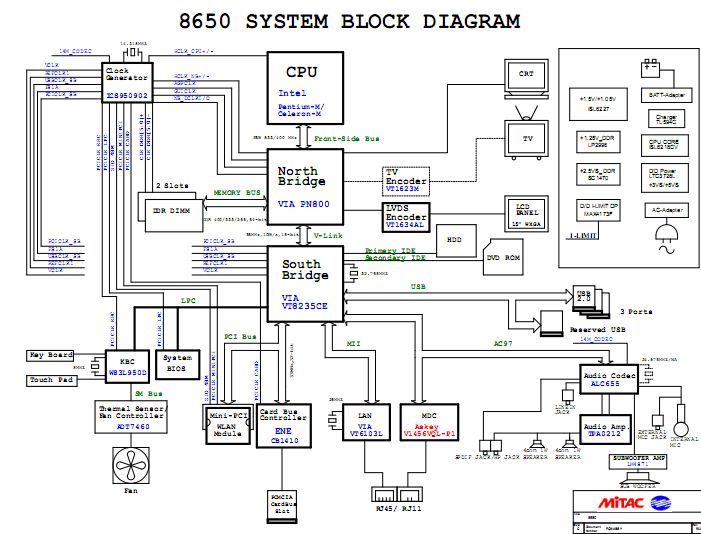

Hasee V700C 700S (MATIC 8650) Block Diagram:
