HP DV6-6000 Series schematic, FLEX Computing H510UA1

The motherboard schematic for HP DV6-6000 Series laptop/notebook, FLEX Computing H510UA1.
CPU: Dual/ Single Core AMD Danube
North Bridge: AMD RS880M + ATI Seymour/ Whistler
South Bridge: AMD SB820M
OEM: FLEX Computing
Project: H510UA1
Document Number: HPMH-40GAB6300-D
Rev: D
Format: PDF
Total Pages: 51
File size: 1.16MB
Sale Price: 10.5$

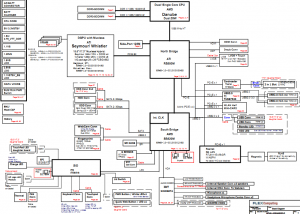

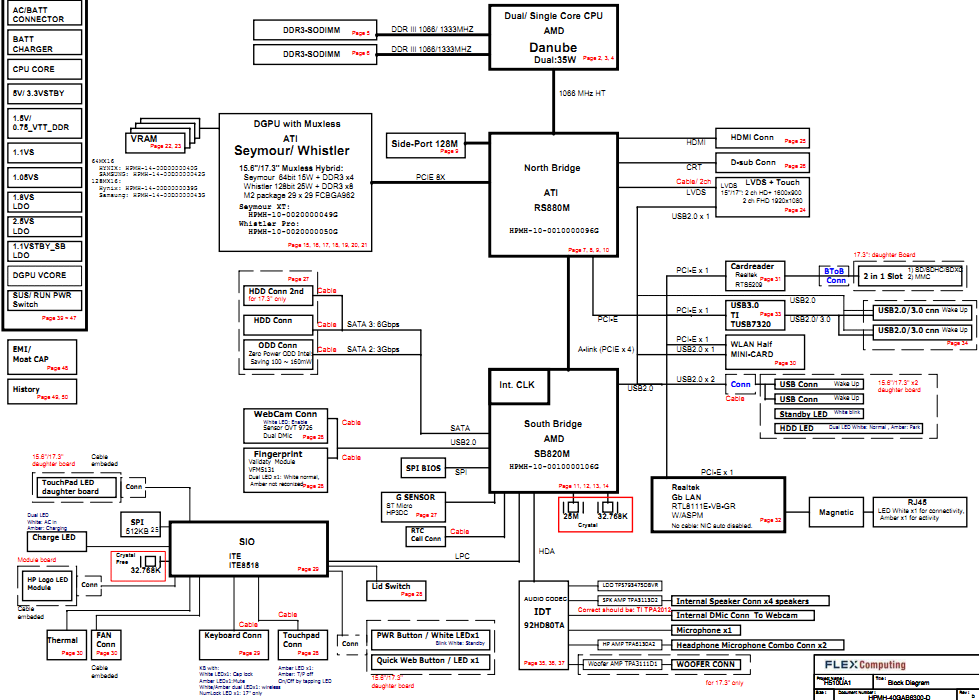

HP DV6-6000 Block Diagram:
