HP DV6/DV7 schematic & boardview, DDR3 DIS UT3/UT5

The motherboard schematic & boardview for HP DV6/DV7 UT3/5 DDR3 with ATI VGA laptop/notebook, Quanta UT3/5.
CPU: Mobile Penryn
North Bridge: Intel Cantiga PM45 + DDR III + VGA ATI M92/M96
South Bridge: Intel ICH9-M
OEM: Quanta
Project: UT3/5
Rev: DB
Format: PDF
Total Pages: 43
Sale Price: 11.5$(include boardview)

HP DV6 DV7 DIS Block Diagram:

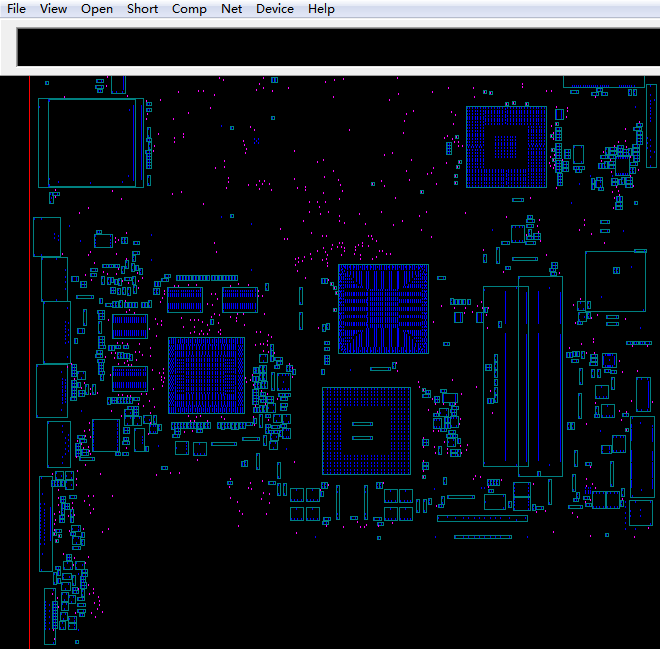

HP DV6 DV7 DIS boardview:
