HP Pavilion dv4/dv4-4000 schematic, Inventec KITTY14I-DIS 6050A2442901

The schematic diagram for HP Pavilion dv4, HP Pavilion dv4-4000 laptop/notebook, INVENTEC KITTY14I-DIS 6050A2442901-MB-X01.
CPU: Sandy-Bridge
Discrete Graphic ATI Seymour
Chipset: Cougar-Point
OEM: INVENTEC
Title: KID14I
Code: WS
DOC.NUMBER:
REV: 000
Format: PDF
Total Pages: 60
File size: 849KB
Sale Price: 10.5$

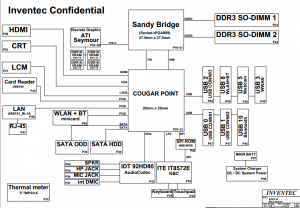

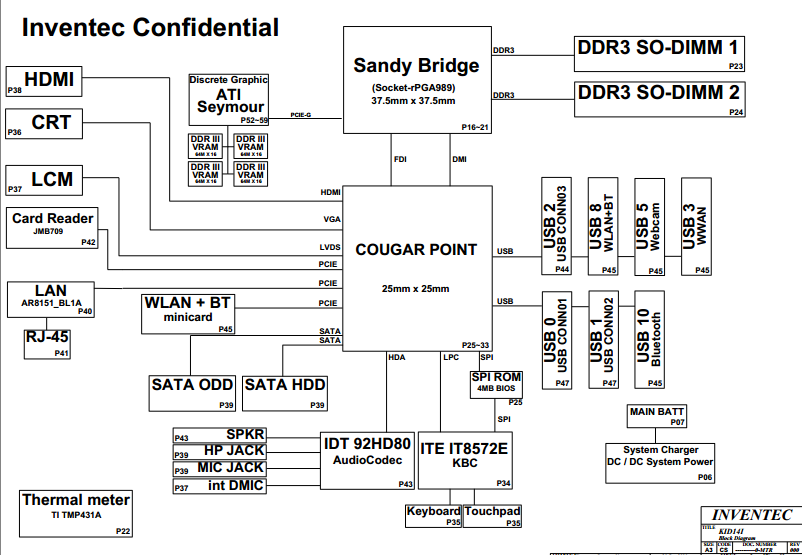

HP Pavilion dv4 dv4-4000 Block Diagram:
