HP Pavilion DV5 schematic diagram(Discrete)

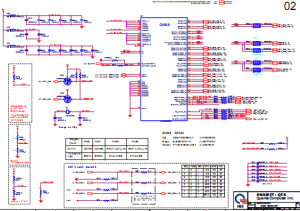

The motherboard schematic diagram(pdf) for HP Pavilion DV5(Discrete) laptop/notebook, Quanta QT6, Discrete: Nvidia NB9M-GE/NB9P-GS.
CUP: Penryn
North Bridge: Cantiga PM45,GM45
South Bridge: ICH9-M
Discrete: Nvidia NB9M-GE/NB9P-GS
OEM: Quanta Computer Inc.
Project: QT6
Format: PDF
Total Pages: 44
File size: 1.53MB
Language: English
Sale Price: 15.5$

HP Pavilion DV5(Discrete) Block Diagram:
