HP Pavilion DV7 (UMA) schematic, JAK00 LA-4081P

The motherboard schematic for HP Pavilion DV7 (UMA) laptop/notebook, Schematics Document, JAK00 Mainboard Compal LA-4081P,Mobile Penryn uFCPGA with Intel Cantiga_GM+ICH9-M core logic.
CPU: Mobile Penryn
North Bridge: Intel Cantiga MCH
South Bridge: Intel ICH9-M
OEM: Compal Electronics
Document Number: Montevina Consumer UMA
Revision: 0.3
Format: PDF
Total Pages: 44
Sale Price: 12.5$

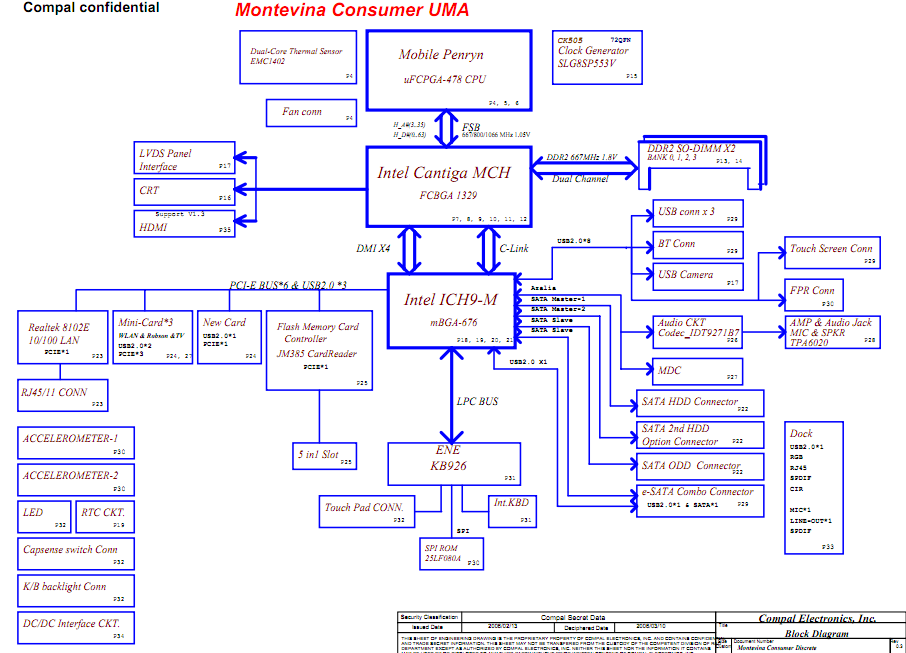

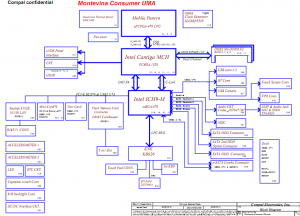

HP Pavilion DV7 (UMA) Block Diagram:
