HP Pavilion G4/G6 schematic, Quanta R13J, INTEL UMA DISCRETE

The motherboard schematic for HP Pavilion G4/G6 laptop/notebook. Quanta R13J Mainboard, R13J INTEL UMA/DISCRETE.
CPU:INTEL Sandy + Nvidia N12P-GV
Chipset: INTEL PCH COUGAR POINT
OEM: Quanta Computer Inc
Project: R13J
Rev: 1A
Format: PDF
Total Pages: 38
File size: 1.23MB
Sale Price: 11.5$

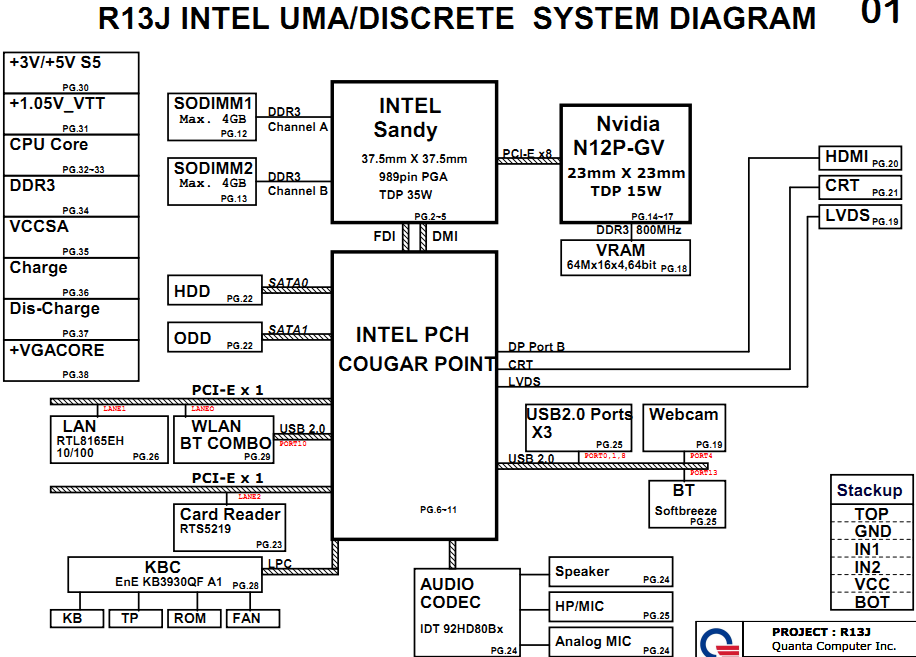

HP Pavilion G4 G6(Quanta R13J) Block Diagram:
