HP Pavilion zv5000/zx5000 laptop schematics(LA-1811)

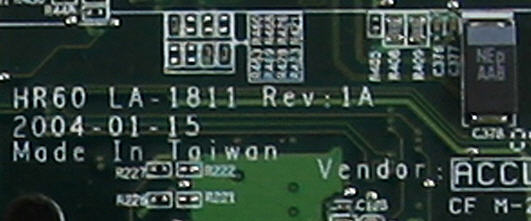

The motherboard schematic diagram for HP Pavilion zv5000/zx5000 laptop/notebook, and also fit Compaq Presario R3000(intel) laptop. HR60 LA-1811 MOTHERBOARD.
CUP: Intel Northwood/Prescott Processor
Chip Set: ATI-RC300M & ATI-SB200
OEM: Compal Electronics, Inc.
Document Number: LA-1811
Format: PDF
Total Pages: 66
File size: 1.24MB
Language: English
Sale Price: 12.5$

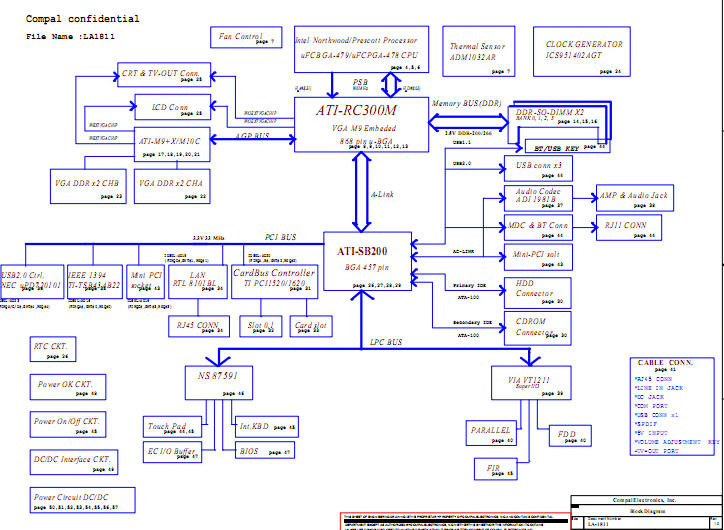

HP Pavilion zv5000/zx5000 Block Diagram(Garda-D):
