HP Spectre XT Ultrabook 13-2000 13-B000 Schematic, QCU00 LA-8554P Motherboard Schematics

HP Schematics

The motherboard schematic for HP Spectre XT Ultrabook 13-2000, HP SpectreXT Pro 13-B000 laptop/notebook, Hadid M/B LA8554P Schematics Document, Intel Ivy Bridge ULV Processor with DDRIIIL memory down+ Panther Point, LA-8554P QCU00 Mainboard.
OEM: Compal
SCHEMATICS,MB A8554
Format: PDF
Searchable PDF file, No watermark of website
Total Sheet: 46
Sale Price: 9.5$

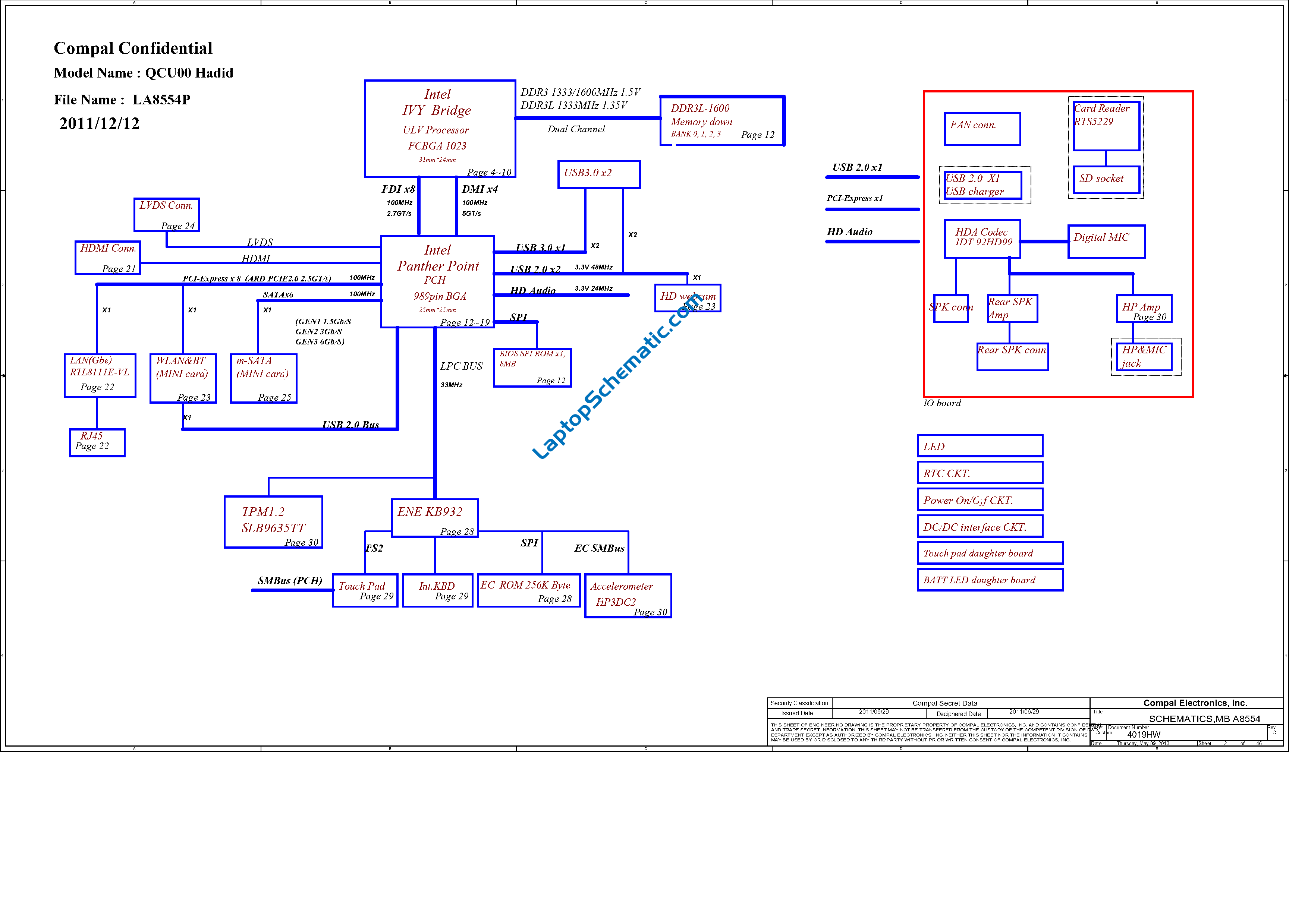

HP Spectre XT 13-2000 13-B000 LA-8554P Block Diagram:
HP Spectre XT 13-2000 QCU00_VCU01_LA-8554P

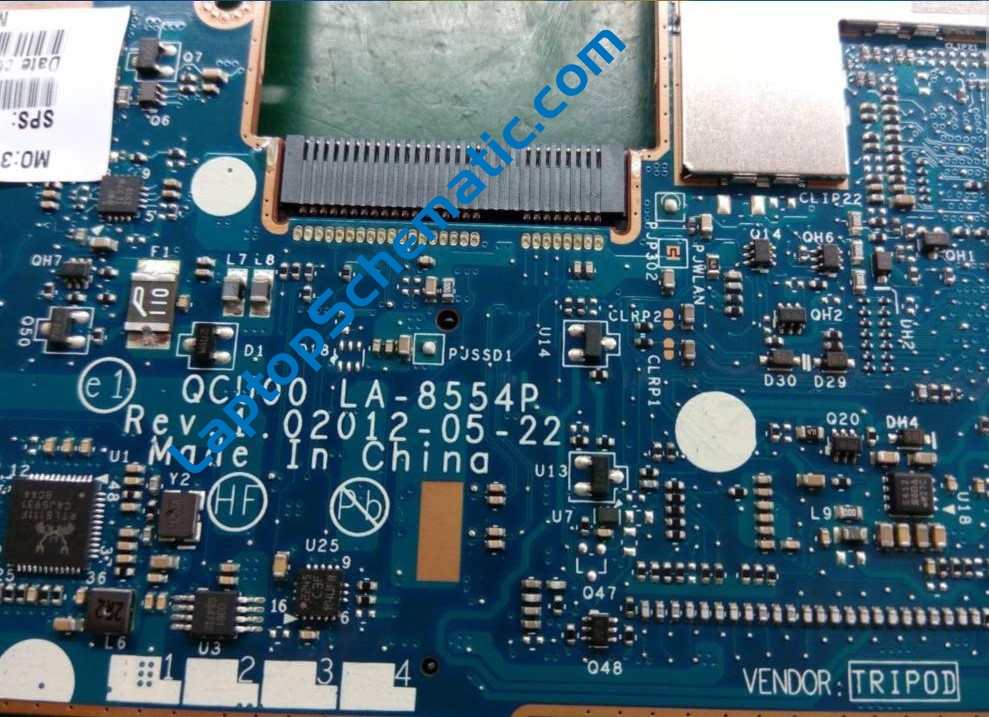

HP Spectre XT 13-2000 13-B000 LA-8554P Motherboard:
HP Spectre XT 13-2000 13-B000 LA-8554P Motherboard
