HP Spectre X360 15-BL 15T-B Schematic, Quanta X32 DA0X32MBAG0
The motherboard schematic for HP Spectre X360 15-BL 15T-B Series laptop/notebook, Quanta X32 DA0X32MBAG0 Mainboard, Intel KABY LAKE ULT Platform.
CPU: INTEL Kabylake – U
NVIDIA N16S-GTR-S
DDR4 x 2133MHz 1.2V
OEM: Quanta Computer Inc.
Project: X32
Format: PDF
Searchable PDF file, No Watermark
Total Sheet: 59
File size: 1.95 MB
Sale Price: 11.5$

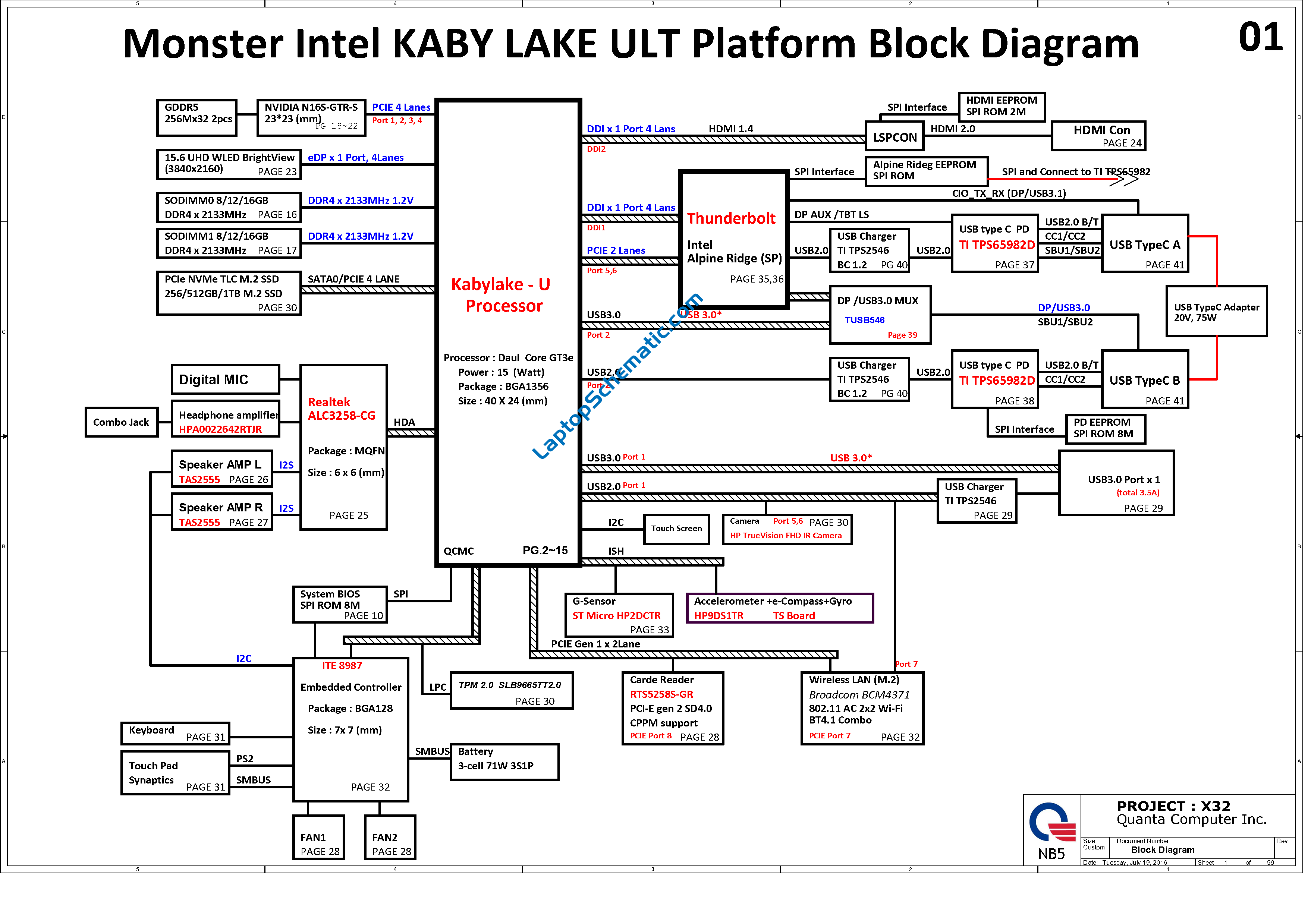

HP Spectre X360 15-BL 15T-B Schematic Quanta X32 Block Diagram:
HP X360 15-BL 15T-B Schematic Quanta X32 Block Diagram

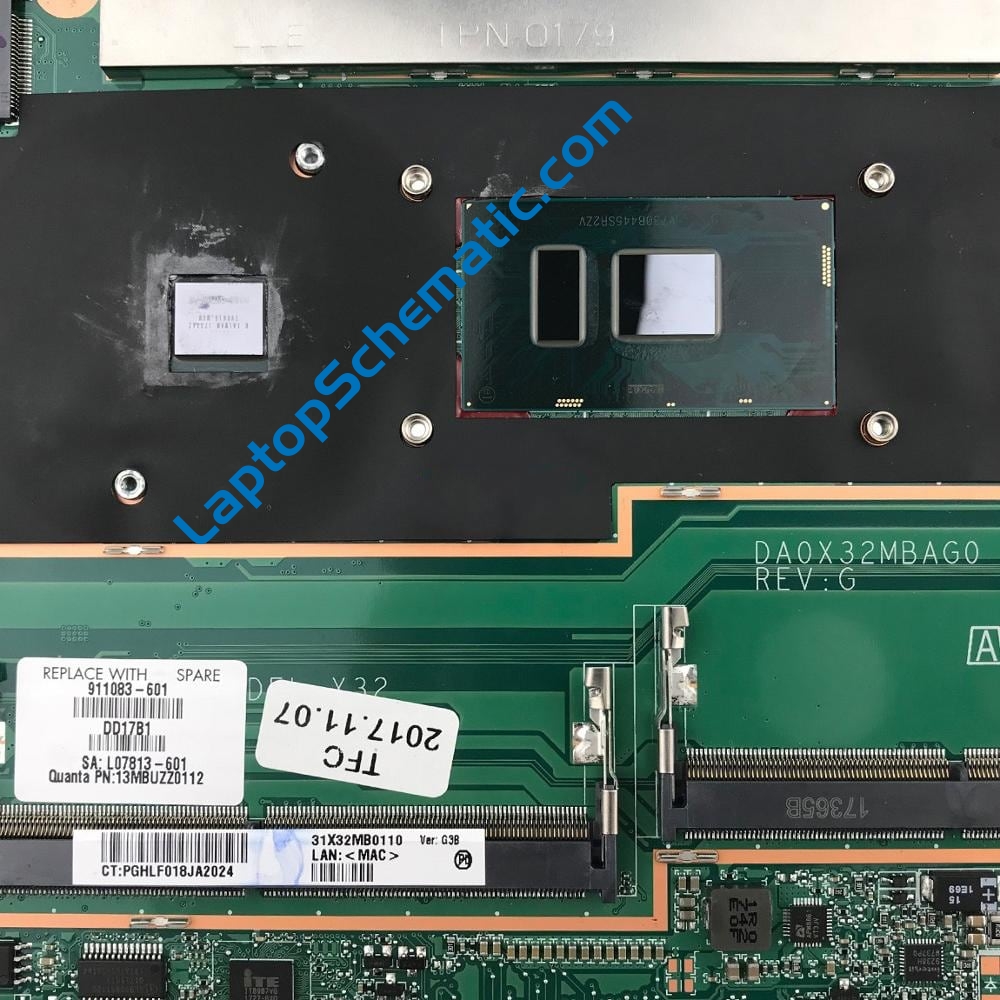

HP Spectre X360 15-BL 15T-B Quanta X32 DA0X32MBAG0 Motherboard:
HP X360 15-BL 15T-B Quanta X32 DA0X32MBAG0 Motherboard
