Lenovo E200s schematic, LA-7041 Edge 12+

The motherboard schematic for Lenovo E200s laptop/notebook, Compal LA7041- Edge Schematics Document, Intel Sandy Bridge Processor with DDRIII + Cougar Point PCH.
CPU: Intel Sandy Bridge ULV + DDR3
North Bridge: Intel Cougar Point
South Bridge: ICH9-M
OEM: Compal Electronics, Inc
File Name: LA-7041 Edge 12+
Rev: 0.2
Format: PDF
Total Pages: 40
File size: 1.08MB
Sale Price: 11.5$

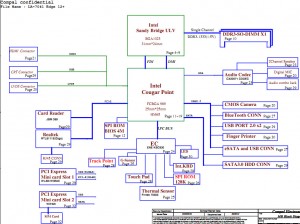

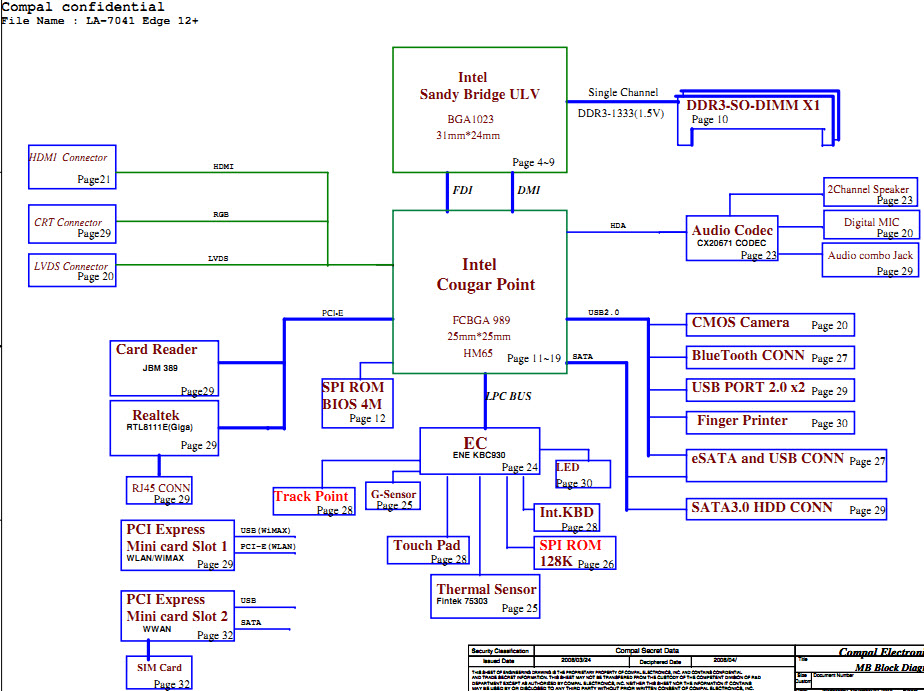

Lenovo E200s Block Diagram:
