LENOVO G510 G410 schematic, LA-9641P

The motherboard schematic for Lenovo G510 G410 laptop/notebook, Compal LA-9641P, DIS M/B Schematics Document, Haswell with DDRIII + Lynx Point PCH.
CPU: Intel HASWELLL
Document Number: LA-9641P
Format: PDF
Total Pages: 81
File size: 2.62MB + 2.65MB + 2.64MB
Sale Price: 12.5$

File list:
LA-9641P R01 0806 R2.0 1011.pdf
LA-9641P R03_0227 R0.3 0306.pdf
LA-9641P R10 0418 R0.3 0419.pdf

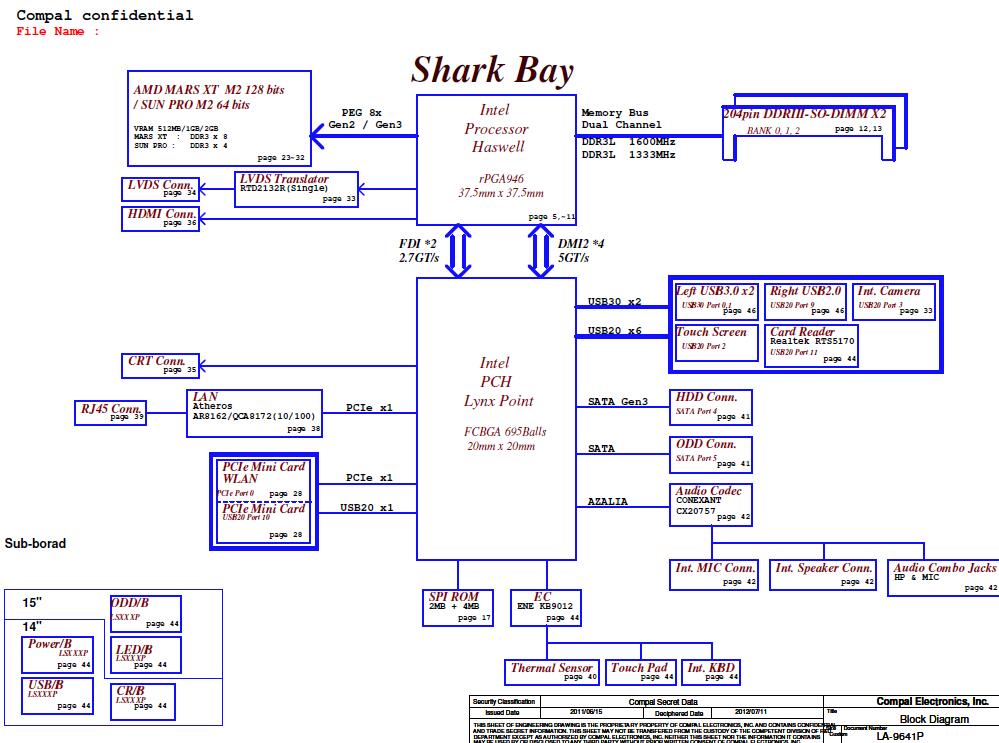

LENOVO G510 G410 Block Diagram:
