Lenovo Ideapad 720S-13IKB Schematic & Boardview, NM-B491 ES322/ES323

Lenovo Schematics

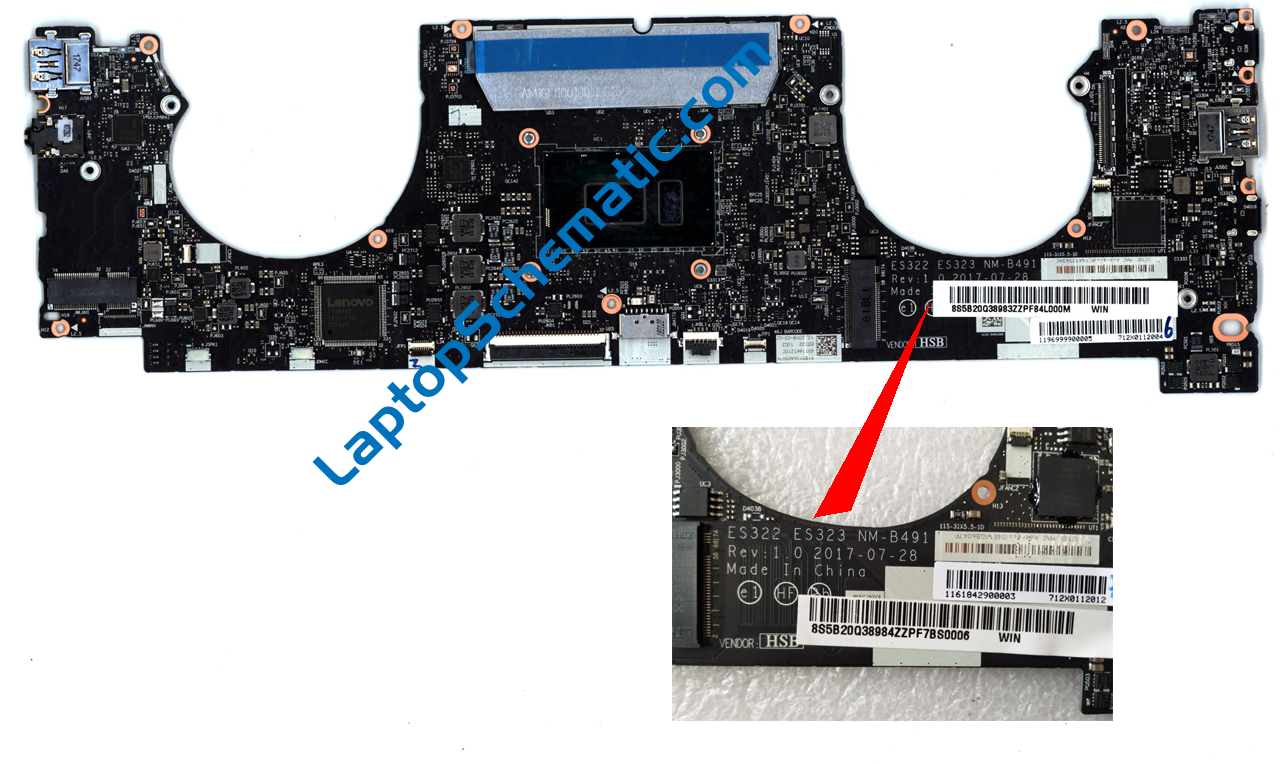

The motherboard schematic diagram and Boardview (.TVW) for Lenovo Ideapad 720S-13IKB (Type 81BV) laptop/notebook, ES322/ES323 NM-B491 MB Schematics Document, ES322 ES323 NM-B491 motherboard.
CPU Intel Kabylake-U42 with DDR4
GPU (UMA)
EC ITE IT8586E
Document Number: ES322
OEM: LCFC
Format: PDF, TVW
Searchable PDF file, No watermark of website
Language: English
Total Pages: 66
Sale Price: 16.5$ (include Boardview)

Also included:

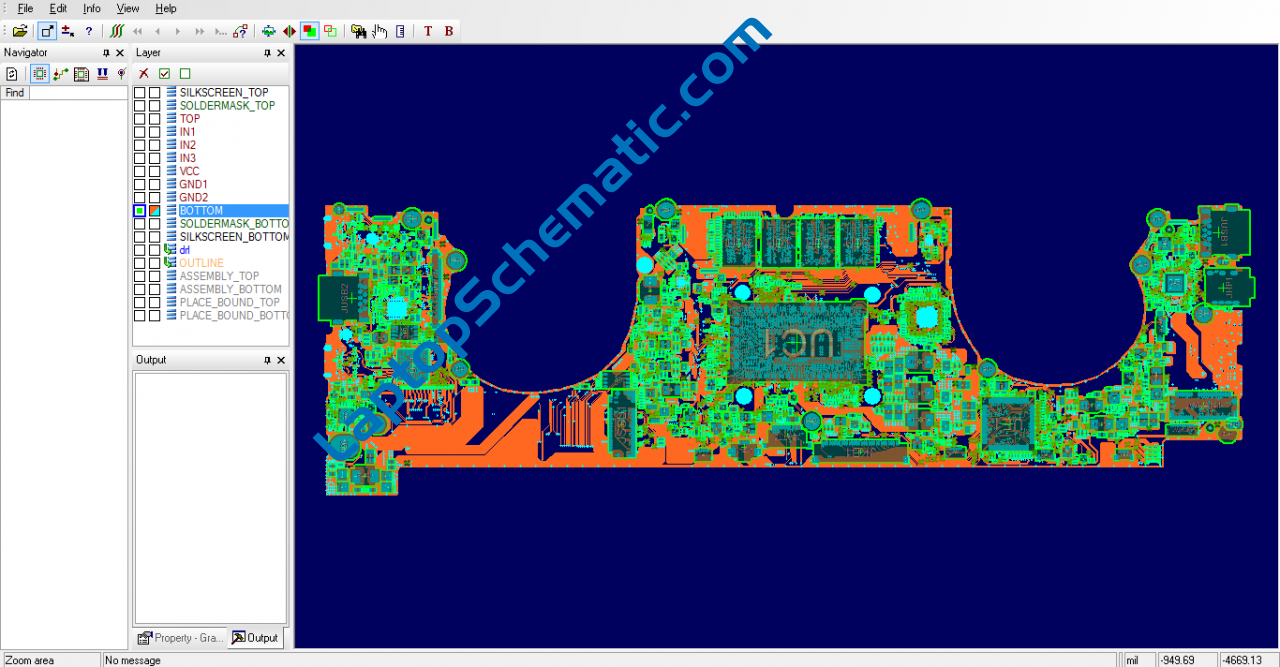

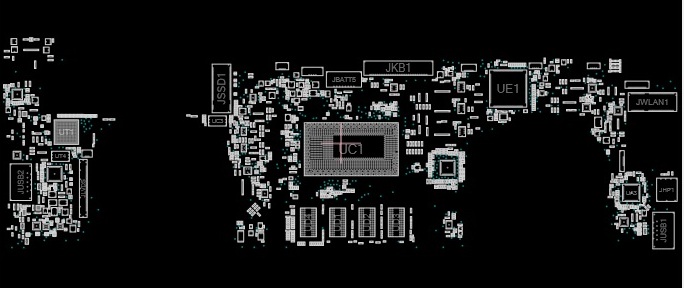

— BoardView file and BoardView software

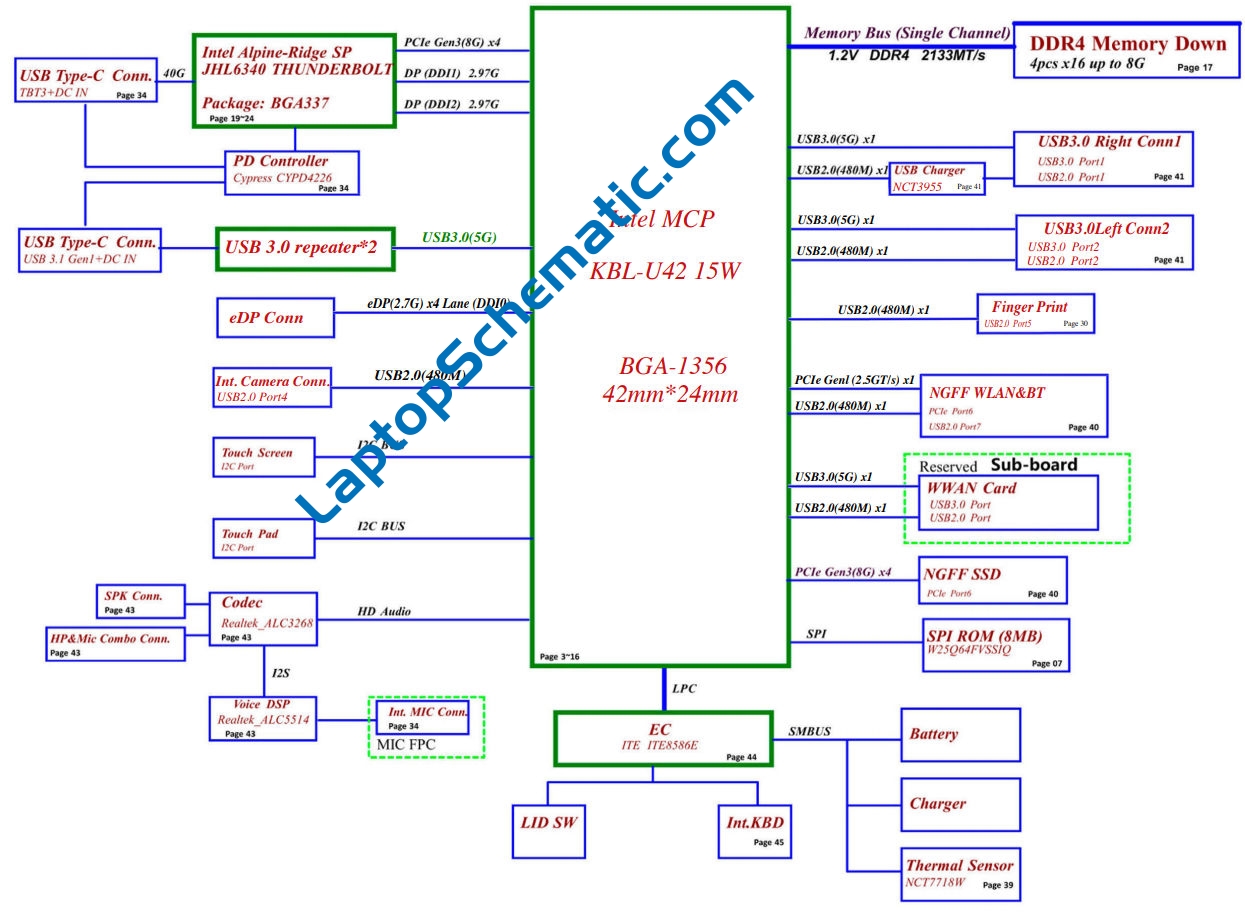

— Power Block Diagram
— Power Sequence Block Diagram

Lenovo Ideapad 720S-13IKB NM-B491 Schematic:
Lenovo Ideapad 720S-13IKB NM-B491 Schematic

Lenovo Ideapad Y700-15ISK Y700-17ISK NM-A541 BoardView:

Lenovo Ideapad Y700-15ISK Y700-17ISK NM-A541 Motherboard:
