Lenovo Thinkpad P50 (LCFC NM-A451) Schematic Circuit Diagram & Boardview

Lenovo Thinkpad P50 (LCFC NM-A451) Block Diagram

The motherboard schematic & Boardview (*.tvw) for Lenovo Thinkpad P50 laptop/notebook, LCFC NM-A451 BP500.
CPU: Intel Skylake_H
Chipset: Intel Skylake-H vPro
OEM: LCFC.
Document Number: NM-A451
Format: PDF
Total Pages: 116
Sale Price: 12.5$ (include Boardview)

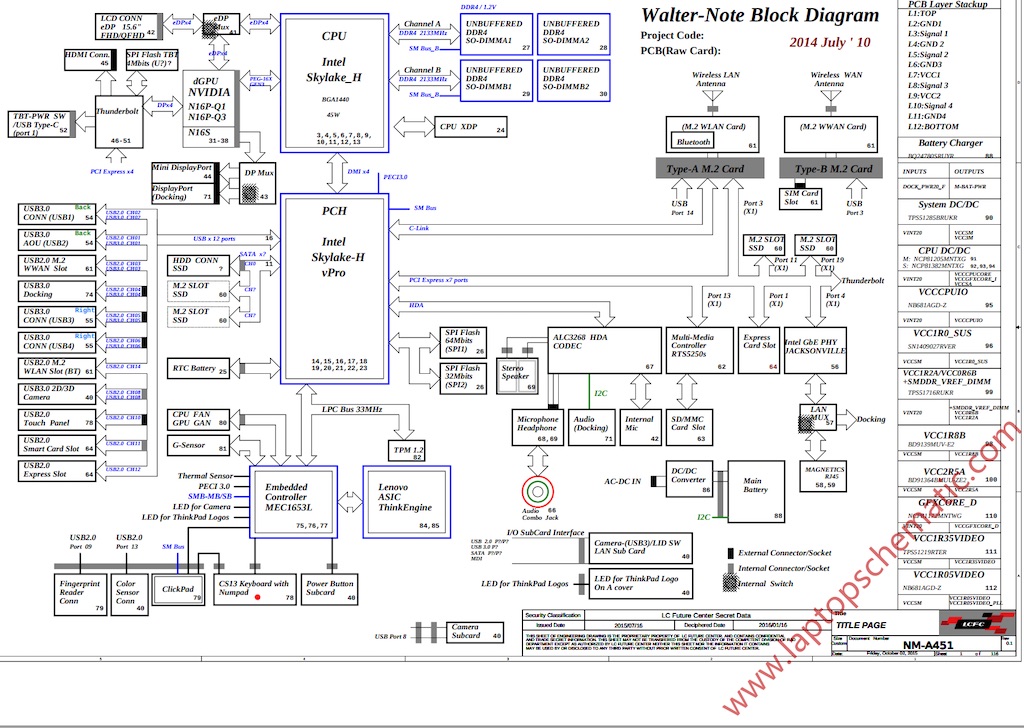

Lenovo Thinkpad P50 (LCFC NM-A451) Block Diagram:

Lenovo Thinkpad P50 (LCFC NM-A451) Block Diagram

Lenovo Thinkpad P50 (LCFC NM-A451) Block Diagram

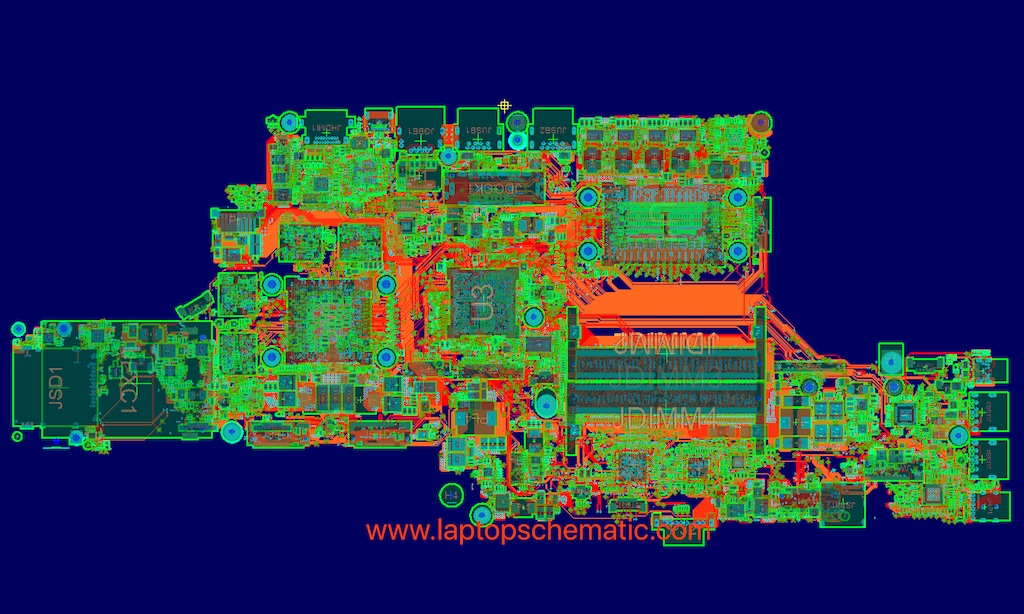

Lenovo Thinkpad P50 (LCFC NM-A451) boardview:

Lenovo Thinkpad P50 (LCFC NM-A451) boardview

Lenovo Thinkpad P50 (LCFC NM-A451) boardview
