Lenovo Thinkpad T460S Schematic, BT460 NM-A421

The motherboard schematic for Lenovo Thinkpad T460S laptop/notebook, Thorpe-1 SWG SOVP Logic Schematics, BT460 NM-A421 Motherboard.
CPU: Intel Kaby Lake
BOARD NO: NM-A421
Project Name: THP1_SWG_SOVP
OEM: LCFC
Format: PDF
Sale Price: 12.5$

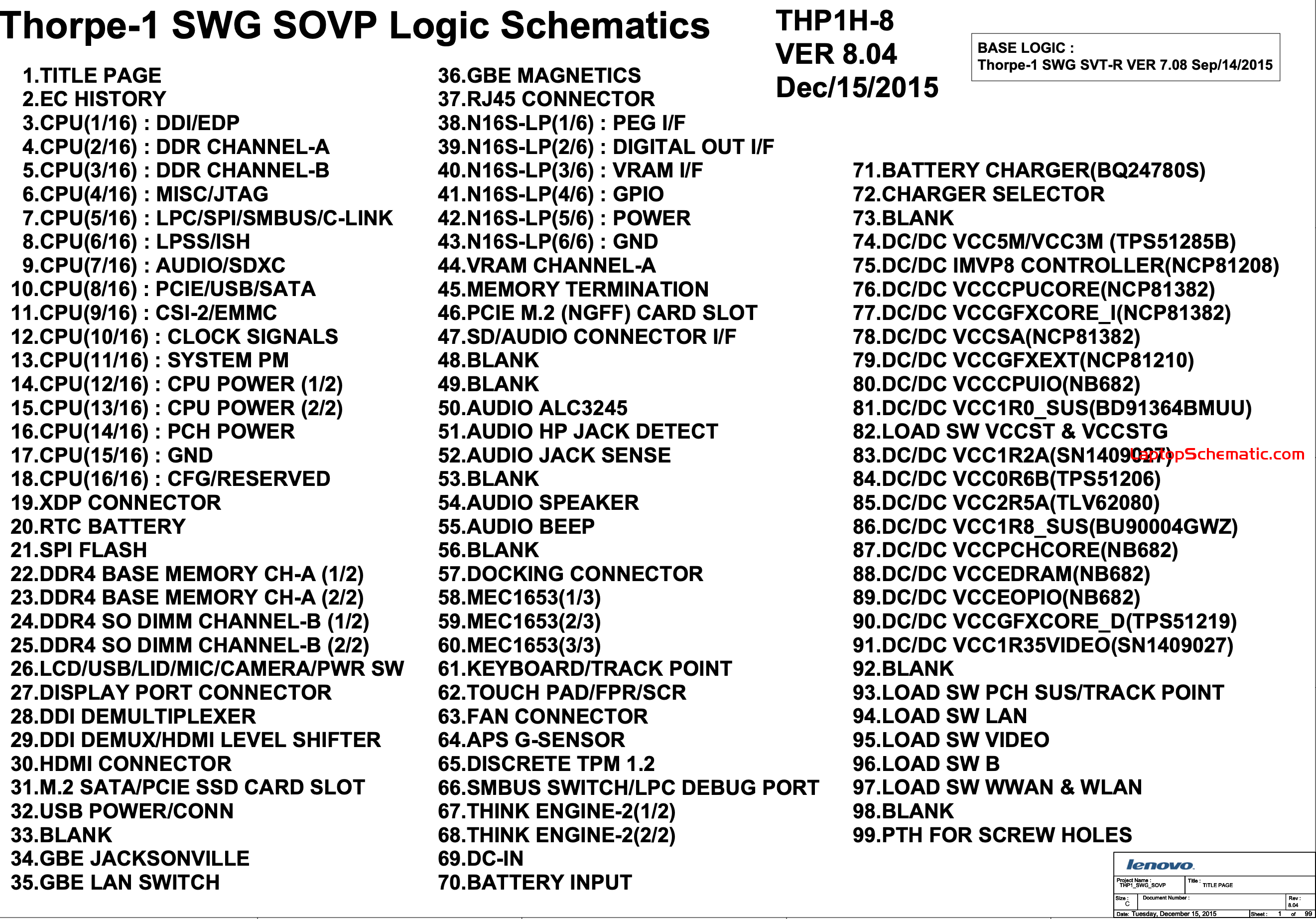

Lenovo Thinkpad T460S NM-A421 Schematics:

Lenovo Thinkpad T460S Schematics

Lenovo Thinkpad T460S NM-A421 Schematics

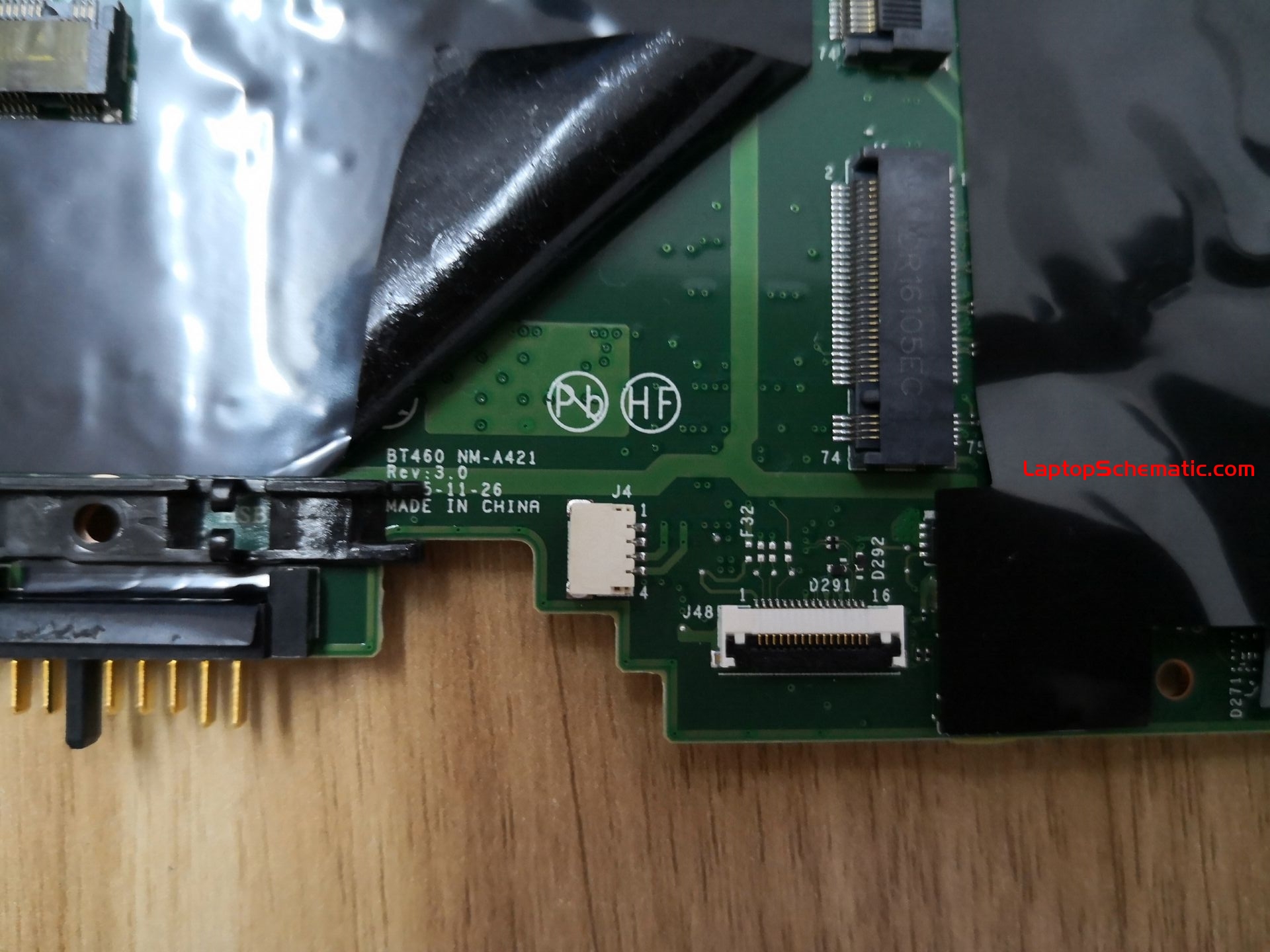

Lenovo Thinkpad T460S BT460 NM-A421 Motherboard:

Lenovo Thinkpad T460S BT460 NM-A421 Motherboard

Lenovo Thinkpad T460S BT460 NM-A421 Motherboard
