Lenovo ThinkPad T510/W510 (UMA) schematic, 08273-SB

The motherboard schematic and boardview(.brd file) for Lenovo ThinkPad T510, Lenovo ThinkPad W510 laptop/notebook, Wistron Kendo-1-UMA Mainboard
CPU: Intel CPU Auburndale
Chipset: Intel PCH
OEM: Wistron Corporation
Project code : 91.4CU01.001
PCB (Raw Card) : 08273_SB
Document Number: Kendo-1-UMA
Rev: SB
Format: PDF
Total Pages: 104
Sale Price: 16.5$ (schematic & boardview)

ThinkPad T510/W510 Block Diagram:

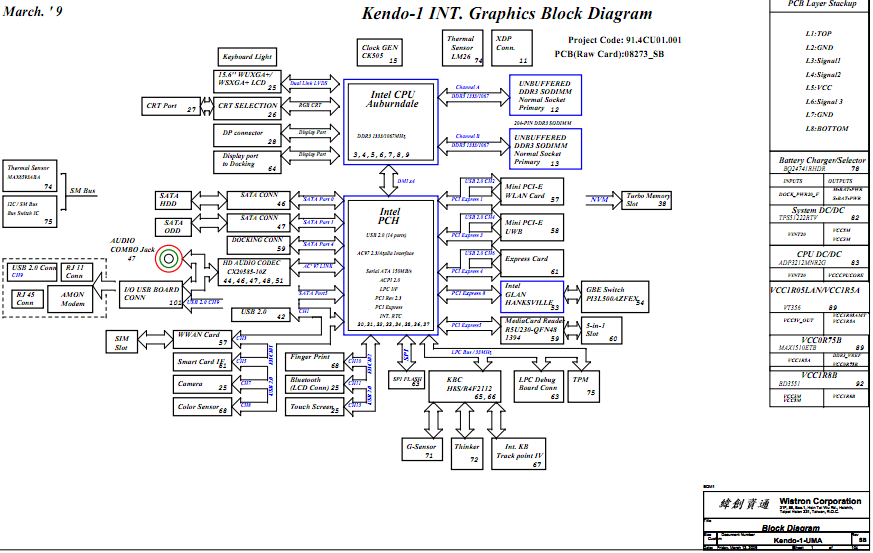

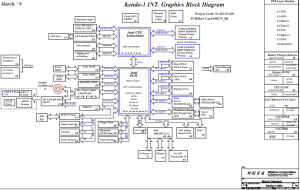

ThinkPad T510 W510 Block Diagram

ThinkPad T510/W510 Boardview:

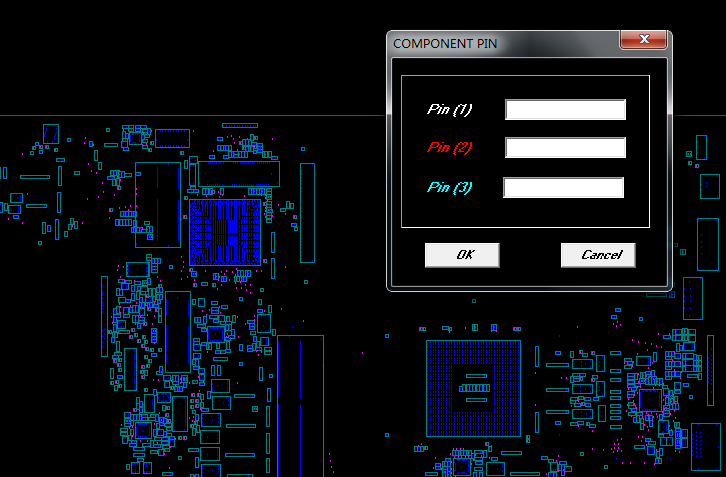

ThinkPad T510 W510 boardview
