Lenovo ThinkPad X120E/X100E/X102E schematic, DAFL7BMB8E0, Quanta MK2.0 FL7B

The motherboard schematic for Lenovo ThinkPad X120e, Thinkpad X100e, Thinkpad X102e laptop/notebook, DAFL7BMB8E0, Quanta MK2.0 Mainboard.
CPU: AMD Brazos Ontario
Chipset: AMD Hudson-M1
OEMuanta Computer Inc.
PROJECT: MK2.0
Rev: 1A
Format: PDF
Total Pages: 47
File size: 1.12MB
Sale Price: 10.5$

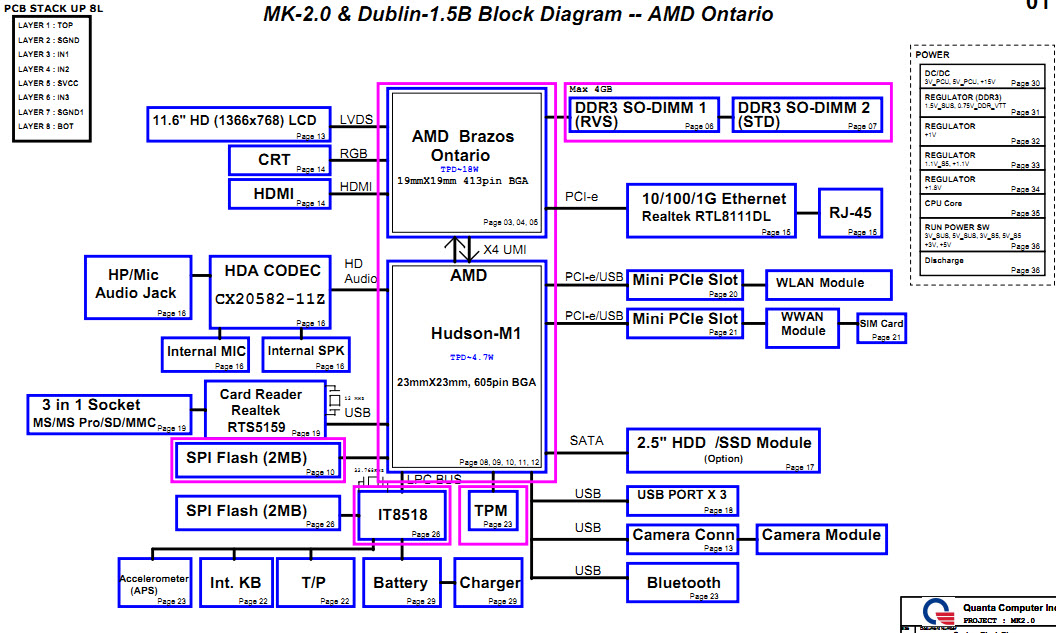

ThinkPad X120E Block Diagram:
