Lenovo YOGA 530-14IKB Schematic & Boardview NM-B601

Lenovo Schematics

Schematic (*.pdf), Boardview (*.tvw) for Lenovo YOGA 530-14IKB laptop, EYG20 EYG10 ES430 ES530 NM-B601 Motherboard.

CPU/PCH: Intel KBL-U22/42 / DDR4
GPU: UMA or DIS (nVidia N17S-G1 + GDDR5)
EC: ITE IT8586E
OEM: LCFC EYG10/ES430/ES530 NM-B601
Sale Price: 12.5$

What’s included:
— BoardView file and BoardView software for motherboard
— Additional schematic diagram for I/O Board (Card Reader + USB3.0 + Hall sensor)

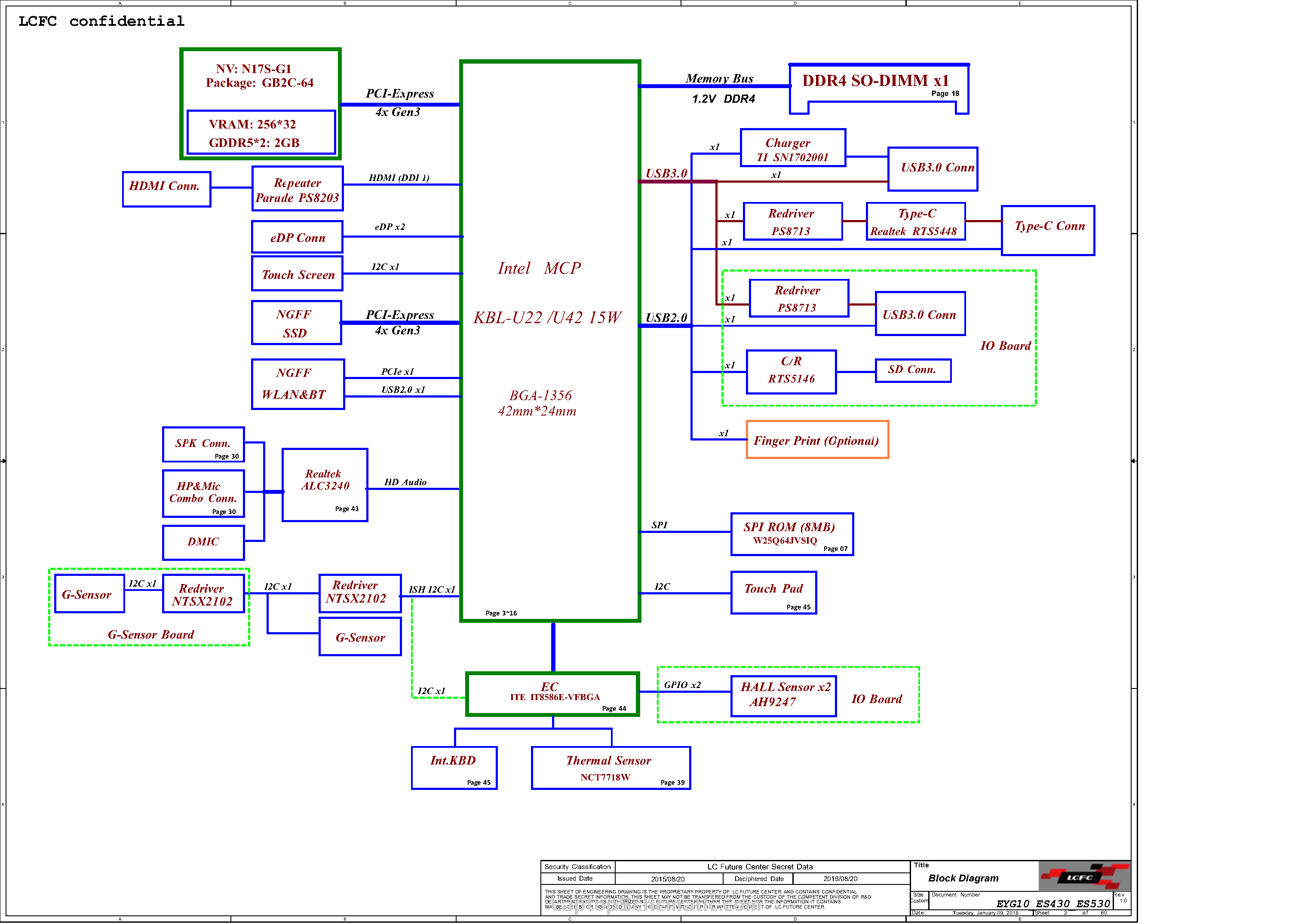

— Power Block Diagram
— Power Sequence Block Diagram

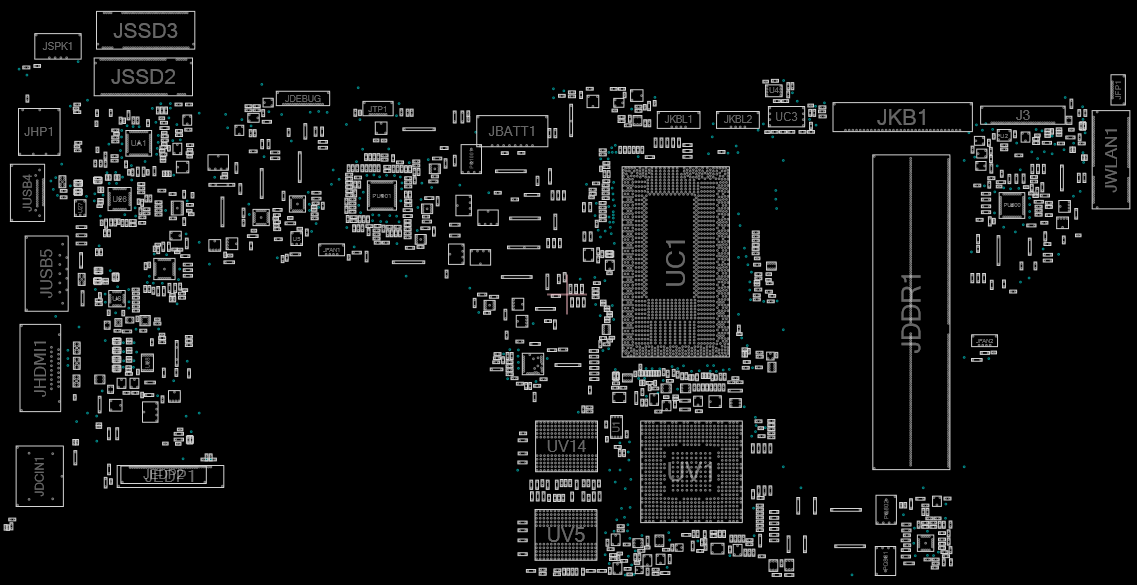

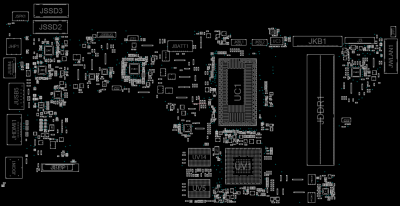

NM-B601 R10.tvw

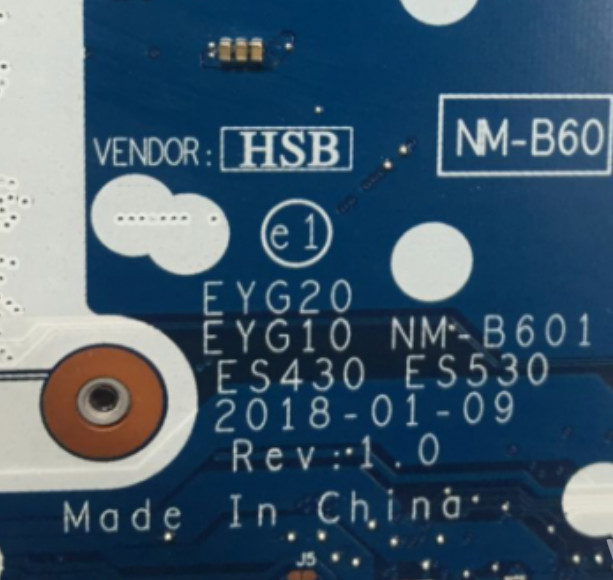

EYG20 EYG10 ES430 ES530 NM-B601 Motherboard
