The motherboard schematic for MS-16382 Motherboard.
CPU: AMD S1 PROCESSOR
North Bridge: nVIDIA C51MV + nVIDIA G73M
South Bridge: nVIDIA MCP51M
Document Number: MS-16382
REV: 0B
Format: PDF
Total Pages: 42
File size: 1.11MB
Sale Price: 8.5$
Gifts:
- ms-1638a-c10-1204-POWER BOARD.pdf
- ms-1638b-c10-1204-TP Board.pdf

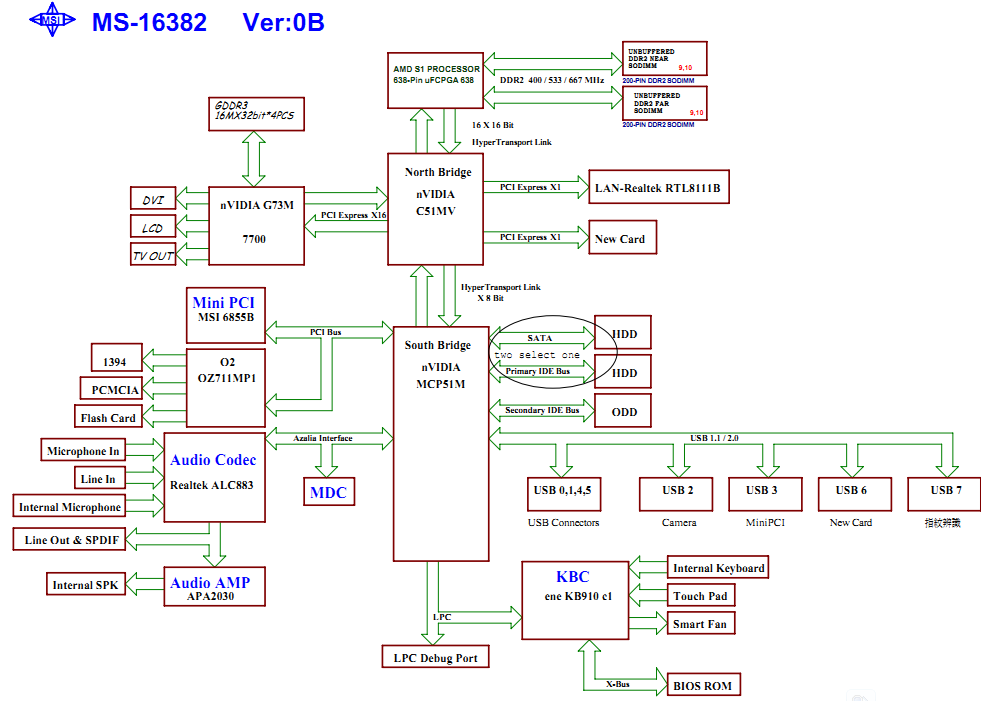

MSI MS-16382 Block Diagram:
MSI MS-16382 Block Diagram
