The motherboard schematic diagram(PDF) for ASUS F3Ka / F3Ke laptop.
CUP: AMD CPU
North Bridge: ATI RS690M
South Bridge: ATI SB600
Project Name: F3Ka / F3Ke
Format: PDF
Total Pages: 63
File size: 1.43MB
Language: English
Sale Price: 12.5$

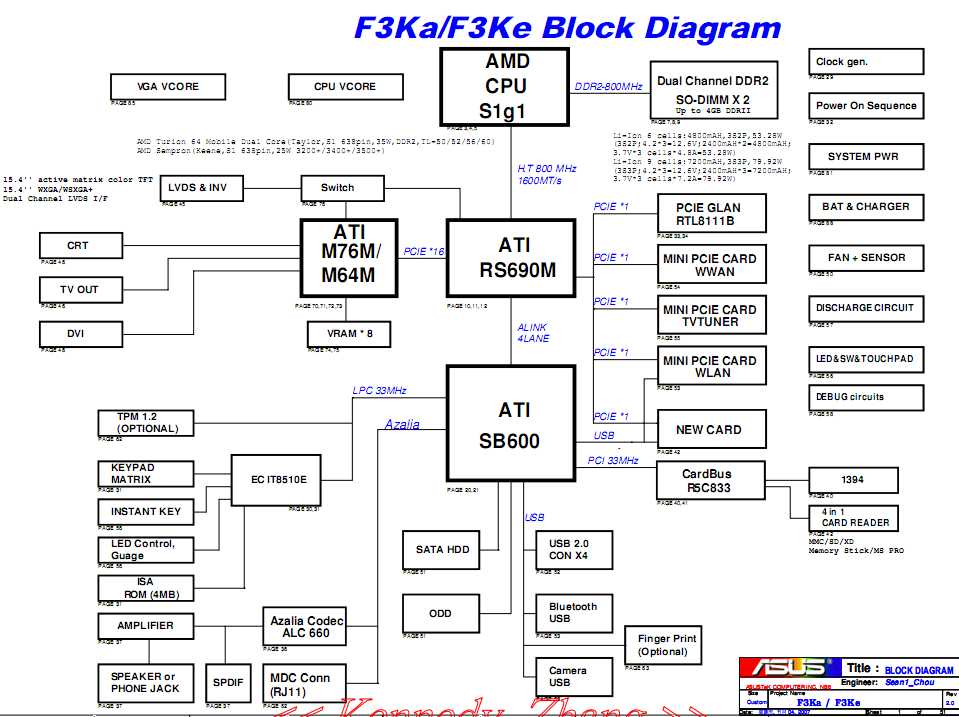

ASUS F3Ka F3Ke laptop Block Diagram:
ASUS F3Ka F3Ke Block Diagram

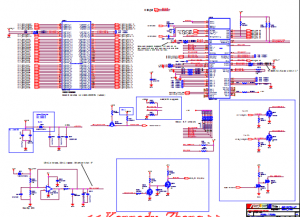

ASUS F3Ka F3Ke schematic Diagram
