The schematic diagram(pdf) schematics for Sony MBX-160 MS70 MotherBoard, fit SONY VAIO VGN-N Series, like Sony Vaio VGN-N220E, SONY Vaio VGN-N250E, SONY Vaio VGN-N21E/W, Sony Vaio VGN-N11S Notebook/laptop.
CPU:Yonah/Celeron M
North Bridge: Calistoga 945GM 940GML
South Bridge: ICH7-M
OEM: FOXCONN
Project Code & Schematics Subject: MS70 Main Board
Document Number: MS70-1-01
Format: PDF
Total Pages: 54
File size: 1.22MB
Language: English
Sale Price: 15.5$

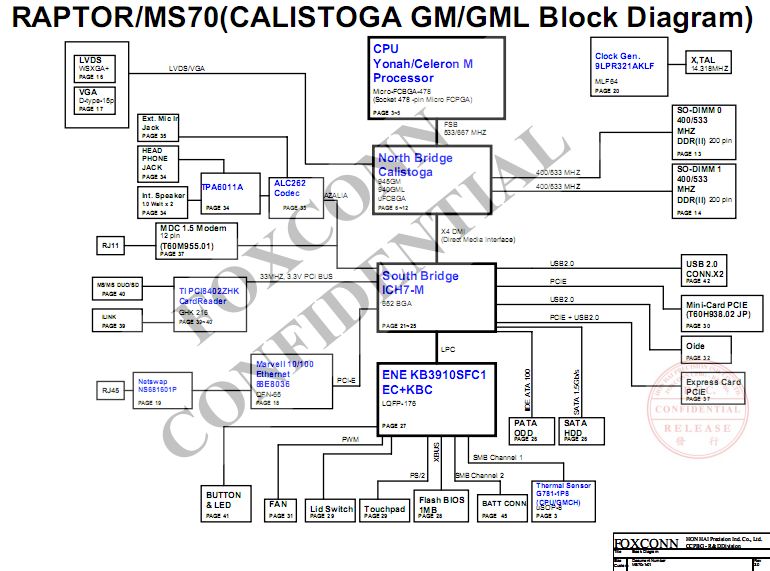

Sony MBX-160 Block Diagram(MS70)

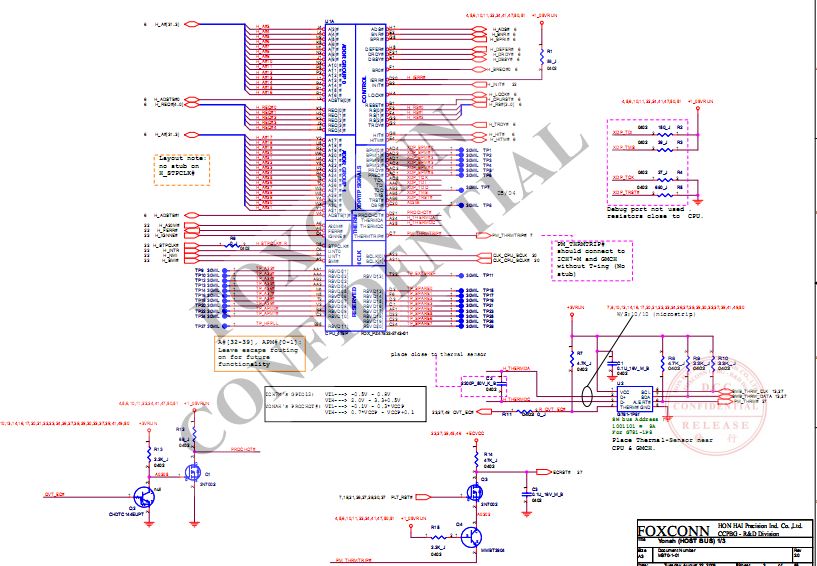

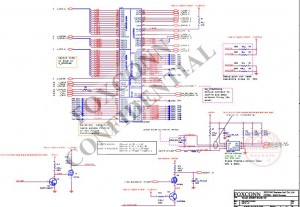

Sony MBX-160 MS70 Schematics
