Sony PCG-21311T schematic, Foxconn M9F1

The motherboard schematic for Sony Vaio VPC-M Series laptop/notebook, Sony M9F1 Main Board.
CPU: PineView-M
Chipset: Tiger Point
OEM: Foxconn
Document Number:M9F1
Rev: 0.1
Format: PDF
Total Pages: 44
File size: 838KB
Sale Price: 10.5$

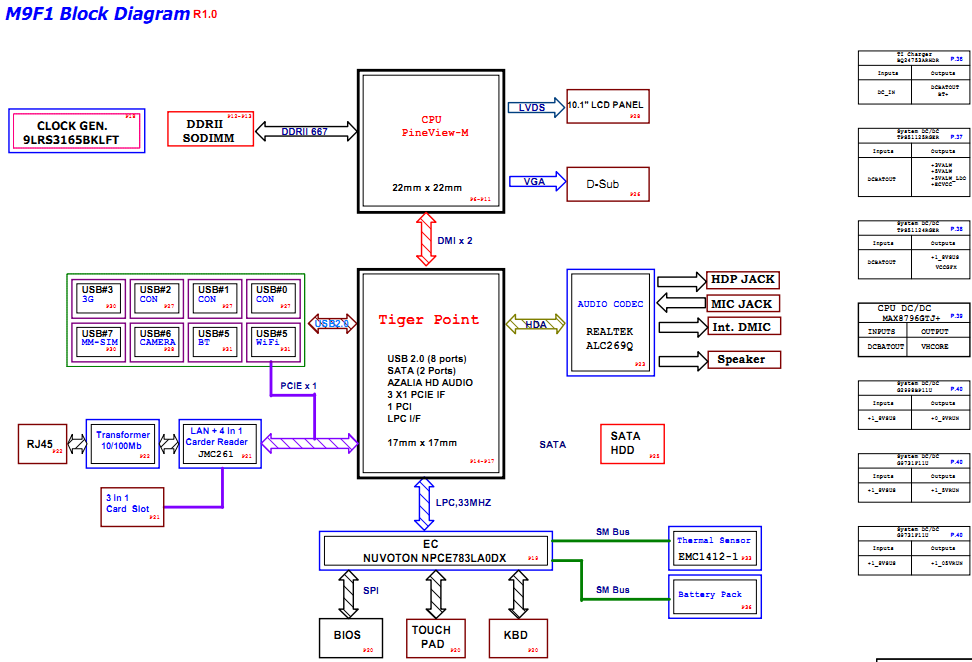

Sony PCG-21311T(M9F1) Block Diagram:
