Sony Vaio VGN-FE Series schematic, MS32 MBX-152

The motherboard schematic for Sony Vaio VGN-FE series, MBX-152 Main Board.
CPU: Yonah/Celeron-M/Merom
North Bridge: Calistoga + n-VIDIA G72M / G73M
South Bridge: ICH7-M
OEM: Foxconn
Project Code & Schematics Subject: MS31 Mainboard
PCB P/N: 1P-0063100-6011
Document Number: MS32
Rev: 1.0
Format: PDF
Total Pages: 68
File size: 1.65MB
Sale Price: 9.5$

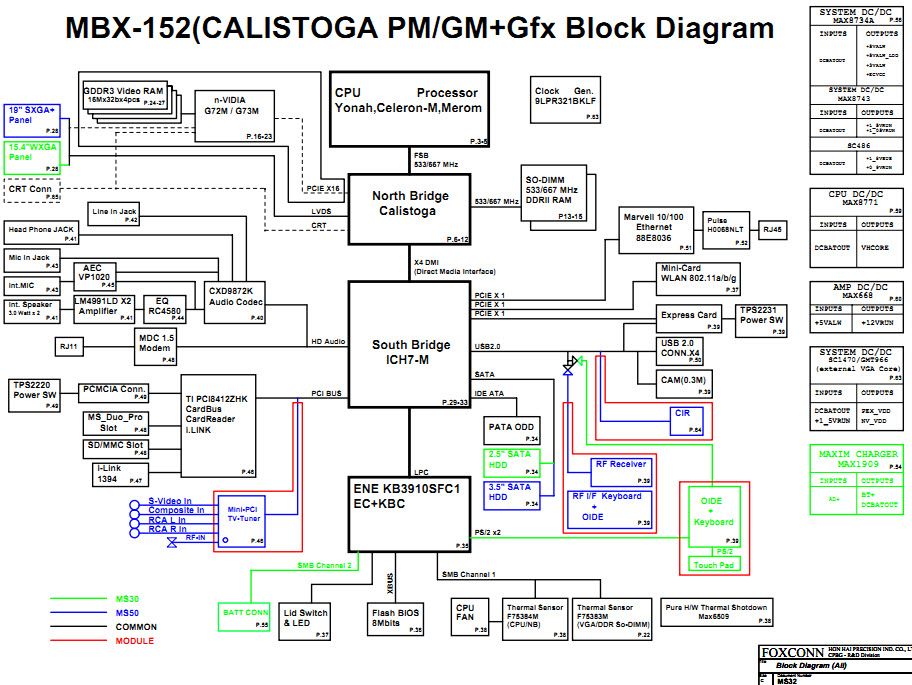

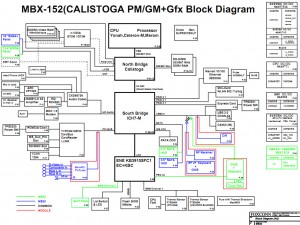

Sony Vaio VGN-FE Series Block Diagram (MS32 MBX-152):
