Sony Vaio VGN-FE Series/VGN-FE600 Series schematic, MS11 MBX-149

The motherboard schematic for Sony Vaio VGN-FE Series/VGN-FE600 Series laptop/notebook, MS11 MBX-149 Main Board, fit for VGN-FE21M, VGN-FE660G, PCG-7N2L, VGN-FE21B, PCG-7N2M, VGN-FE series, VGN-FE660 series, VGN-FE670 series, VGN-FE67G series, VGN-FE18 series, VGN-FE23 series, VGN-FE28 series.
Project Code & Schematics Subject: MS11 Main Board
PCB P/N:
1P-0062100-8010 (FUBAI)
1P-0062200-8010 (NAN YA)
1P-0062500-8010 (HANSTAR)
CPU: Yonah
North Bridge: Calistoga 945GM/GML/PM + nVIDIA G73M GDDR Video-RAM
South Bridge: ICH7-M
OEM: FOXCONN
Document Number: MS11-1-01 ( MBX-149 )
Rev: 0.4
Format: PDF
Total Pages: 66
File size: 1.73MB
Sale Price: 11.5$
Gifts:

• MS11_POWER_SWITCH_BOARD_1.pdf
• MS11_PVT_TOUCH_PAD_LED_1.pdf
• MS11_SW_BOARD_1.pdf

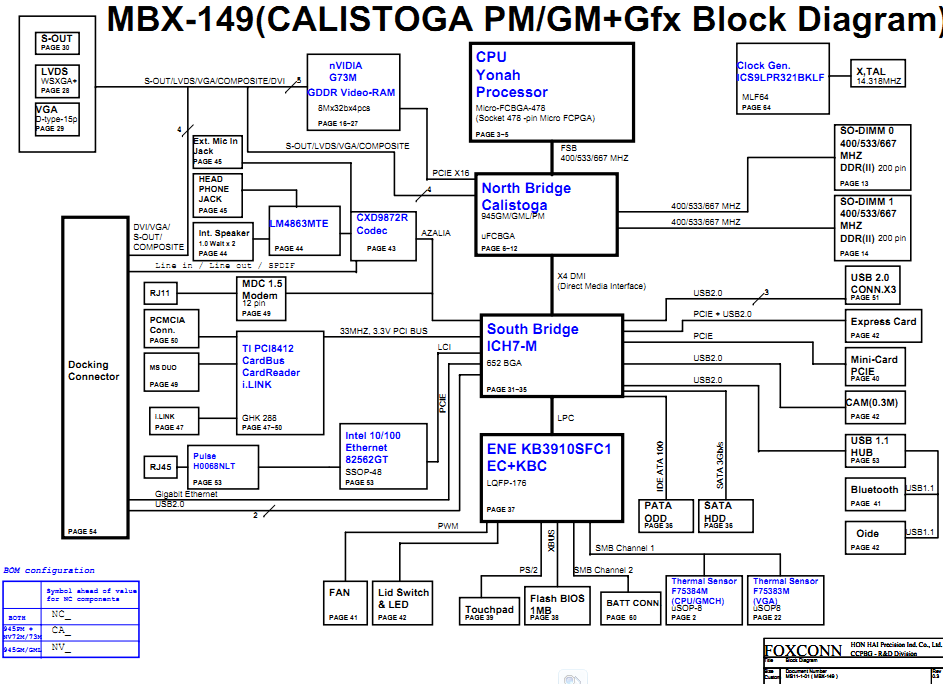

Sony Vaio VGN-FE (MS11 MBX-149) Block Diagram:
