Sony Vaio VPC-F Series schematic, M931 IRX-5300 MBX-215

The motherboard schematic for Sony Vaio VPC-F Series, M931 MBX-215 Main Board.
CPU: Arrandale & Clarksfield (SEAM) Processor + dGPU nVIDIA N11P-GE1/N11M-GE1
Chipset: PCH Ibex Peak-M (PM55/PM57-B3)
OEM: Foxconn
Document Number: M931 (MBX-215)
Rev: SA
Format: PDF
Total Pages: 93
File size: 998KB
Sale Price: 11.5$

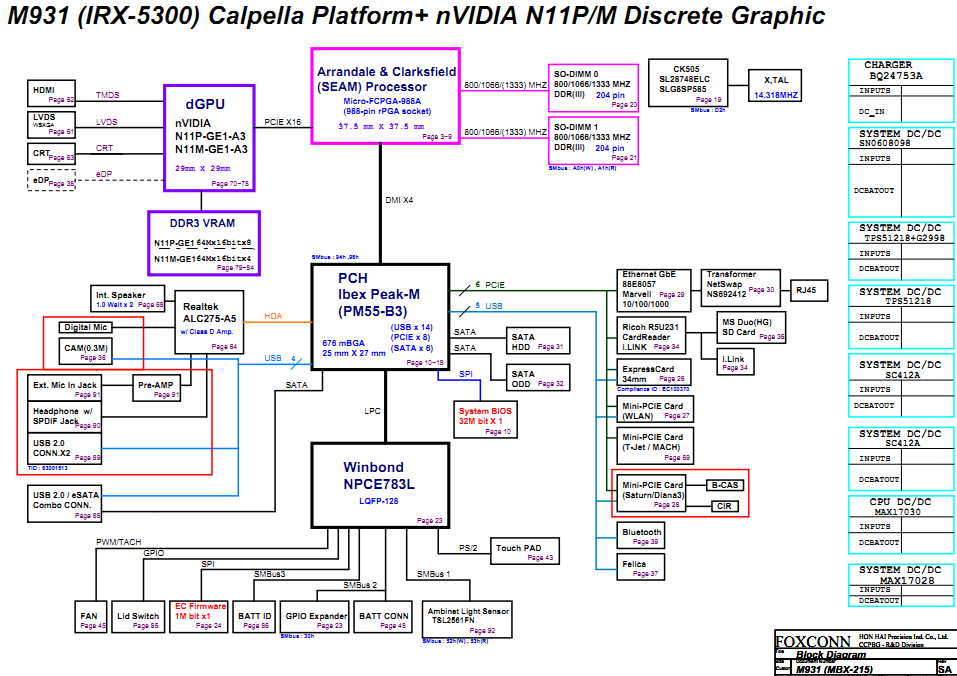

Sony Vaio VPC-F M931 MBX-215 Block Diagram:
Sony Vaio VPC-F M931 MBX-215 Block Diagram

Sony Vaio VPC-F M931 MBX-215 Block Diagram
