Sony VGC-RT2SRY schematic, Foxconn M841 DVT

The motherboard schematic for Sony VGC-RT2SRY All-In-One PC, Foxconn M841 Main Board.
CPU: Core2Quad (uSFF) Core2Duo
North Bridge: Eaglelake(P/G)
South Bridge: ICH10R
OEM: Foxconn
Document Number: M841 DVT
Rev: 0.1
Format: PDF
Total Pages: 77
File size: 2.83MB
Sale Price: 10.5$

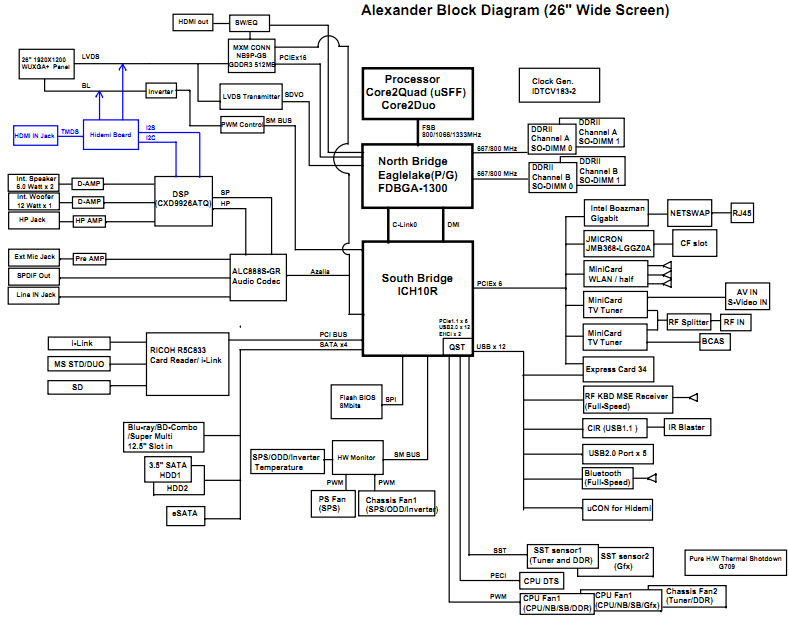

Sony VGC-RT2SRY Block Diagram:
