Sony VGN-CR490 (GD1B MBX-177A) schematic

The motherboard schematic diagram for Sony MBX-177A (GD1B) Motherboard, for Sony PCG-K2T, Sony VGN-CR322H, Sony VGN-CR490 laptop.
CPU: MEROM
North Bridge: Crestline + ATI M64
South Bridge: ICH8-M
OEM: QUANTA COMPUTER
Document Number: GD1B Main Board
Format: PDF
Total Pages: 35
Sale Price: 12.5$

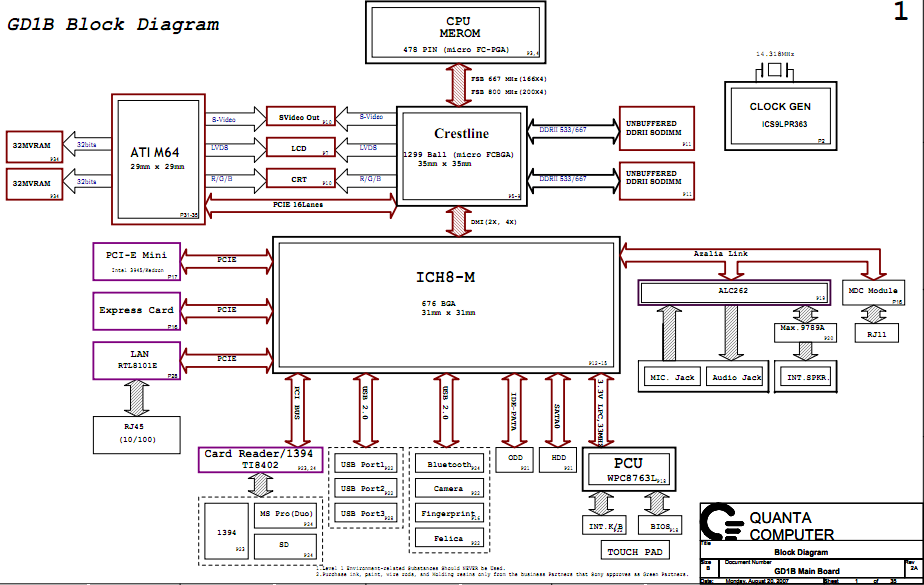

Sony VGN-CR490 (GD1B MBX-177A) Block Diagram:
GD1B MBX-177A Block Diagram

GD1B MBX-177A Block Diagram
