The motherboard schematic diagram(pdf) schematics for Sony MBX-165 MS91 Motherboard, fit SONY VGN-FZ Series, like SONY VGN-FZ25 Notebook/laptop.
CPU: Merom/Celeron
North Bridge: Crestline GL960
South Bridge: ICH8-M
OEM: FOXCONN
Project Code & Schematics Subject: MS91 Main Board
Document Number: MS91-1-01
Format: PDF
Total Pages: 66
File size: 1.42MB
Language: English
Sale Price: 16.5$

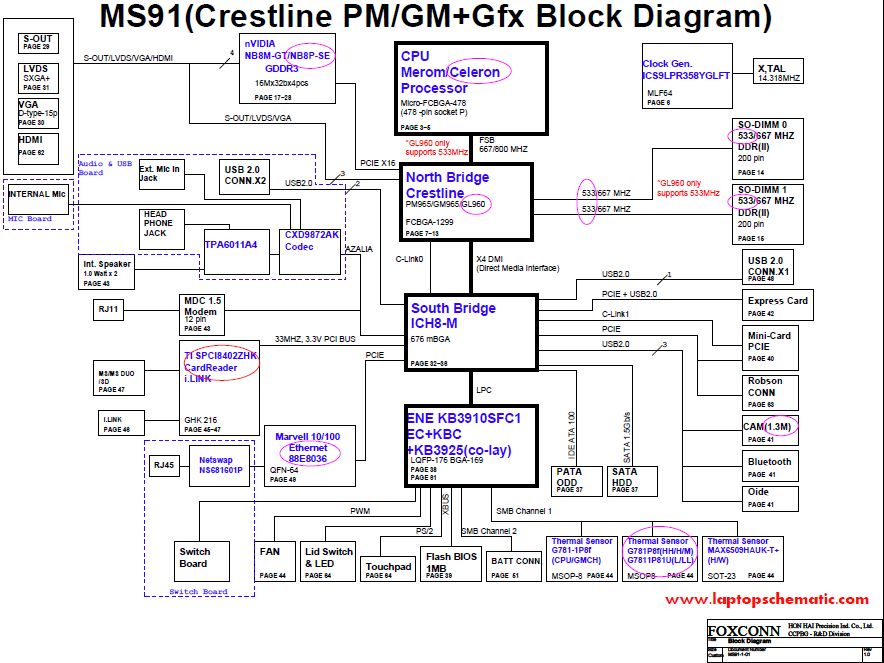

Sony MBX-165 Block Diagram(MS91):
Sony MBX-165 Block Diagram(MS91)
Sony MBX-165 schematics:
Sony MBX-165 MS91 schematics
