Sony VGN-SZ series schematic, IRX-3400 MBX-147

The motherboard schematic for Sony Vaio VGN-SZ series, MBX-147 Main Board, IRX-3400 SCHEMATICS.
CPU: KIKAYON/YONAH-2M
North Bridge: GMCH IC300 Calistoga-GM
South Bridge: IC1400 ICH7-M
OEM: SONY CORPORATION
DRAWING: MBX-147
Rev: 1.154
PART NO: 186977311
Format: PDF
Total Pages: 50
File size: 1.19MB
Sale Price: 10.5$

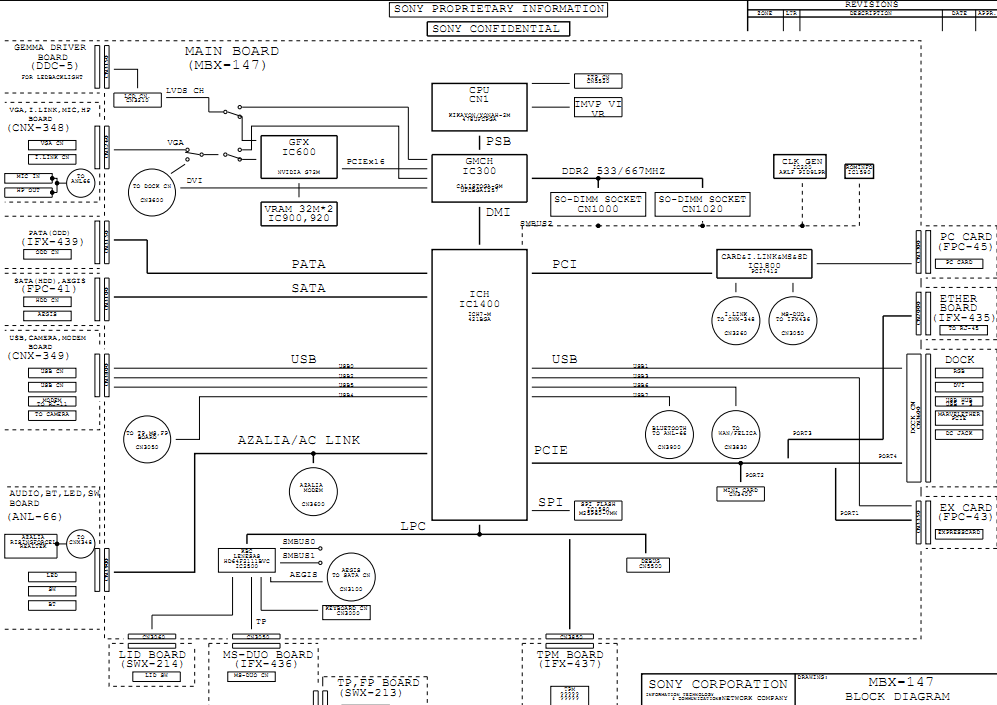

Sony VGN-SZ(IRX-3400 MBX-147) Block Diagram:
