Sony VPC-EB Series schematic, M960/M970 L MBX-223

The motherboard schematic for Sony Vaio VPC-EB Series, M960 Main Board
Project Code & Schematics Subject: M960 & M970 L Model
PCB P/N:
1P-0099J00-60SB (IRIS MB)
1P-1099J00-60SB (IRIS AUDIO)
1P-1099J01-60SB (IRIS PWR)
1P-0099500-60SB (HANNSTAR MB)
1P-1099500-60SB (HANNSTAR Audio)
1P-1099501-60SB (HANNSTAR PWR)CPU: Arrandale
Chipset: PCH Ibex Peak-M (HM55)
OEM: Foxconn
Document Number: M960&M970 L Model
Rev: SA
Format: PDF
Total Pages: 73
File size: 843KB
Sale Price: 11.5$

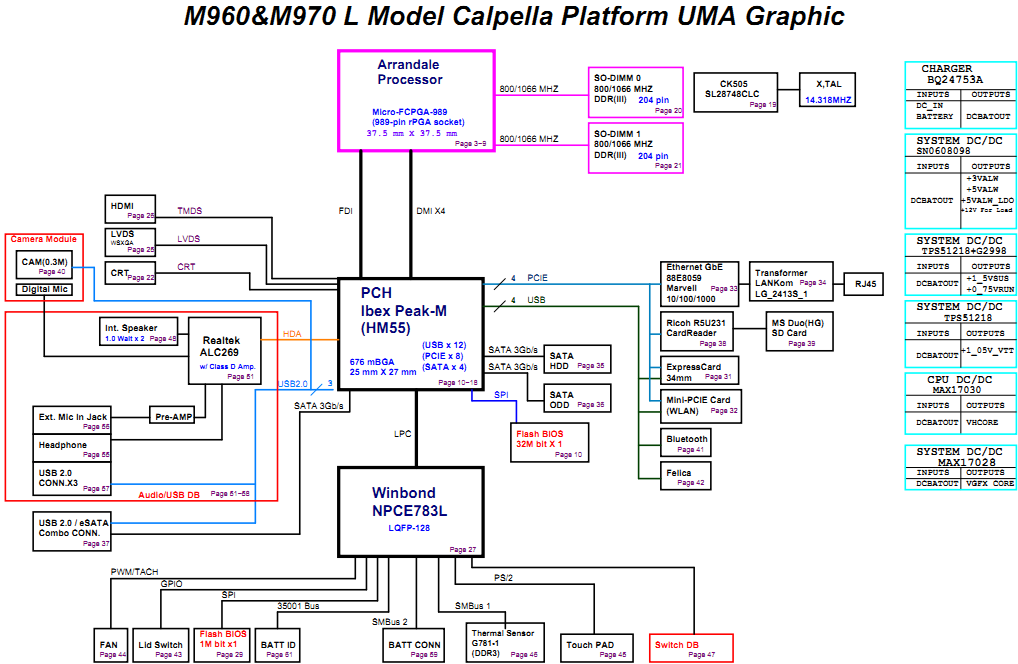

Sony VPC-EB Series (MBX-223) Block Diagram:
