Toshiba Satellite L670/L675 schematic, NALAA LA-6041P

The motherboard schematic for Toshiba Satellite L670, Toshiba Satellite L675, L675-S7108 notebook/laptop, NALAA Mainboard Compal LA-6041P Schematic.
CPU: Intel Arrandale
Chipset: Intel Ibex Peak
OEM: Compal Electronics, Inc.
Model Name: NALAA
File Name: LA-6041P
Document Number: NALAA LA-6041P M/B
Rev: 1.0
Format: PDF
Total Pages: 48
Sale Price: 11.5$

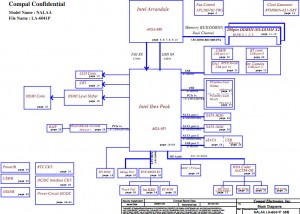

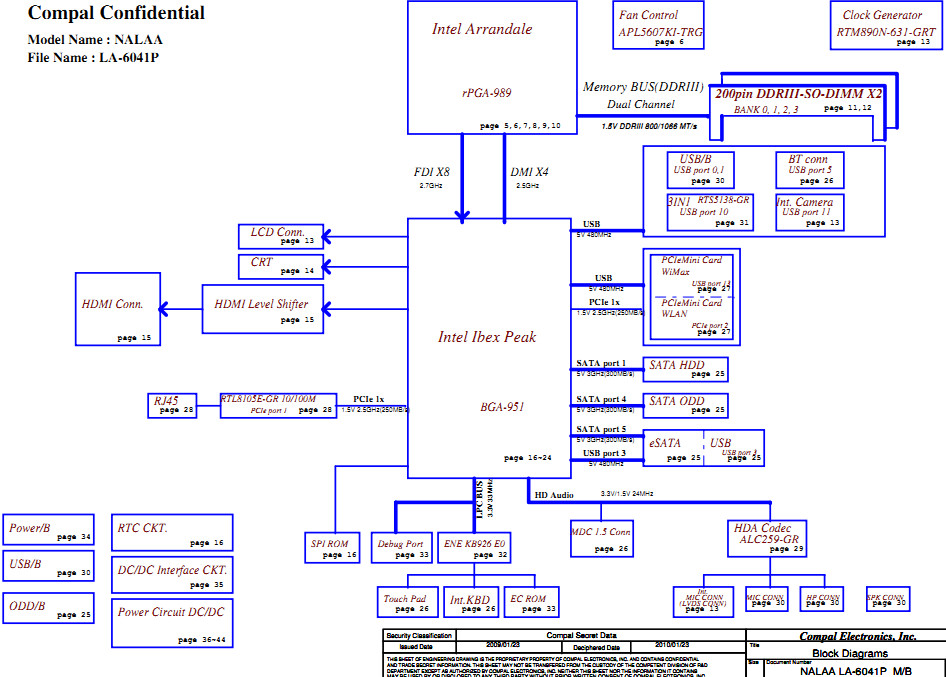

Toshiba Satellite L670/L675 Block Diagram:
