acer Aspire 2000 2010 2020 laptop schematics(DFL32 LA-2242)

The document is PDF format, include:
The motherbord schematic diagram for acer Aspire 2000 Series, acer Aspire 2010 Series, acer Aspire 2020 notebook/laptop, DFL32 Schematics Document, Compal LA-2242.
CUP: Mobile Banias/Dothan
North Bridge: Intel 855GME
South Bridge: Intel ICH4-M
OEM: Compal Electronics, Inc.
File Name: LA-2242
Model Name: DFL32
Title: SCHEMATIC M/B LA-2242
Total Pages: 101
File size: 2.05MB
Language: English
Sale Price: 6.5$

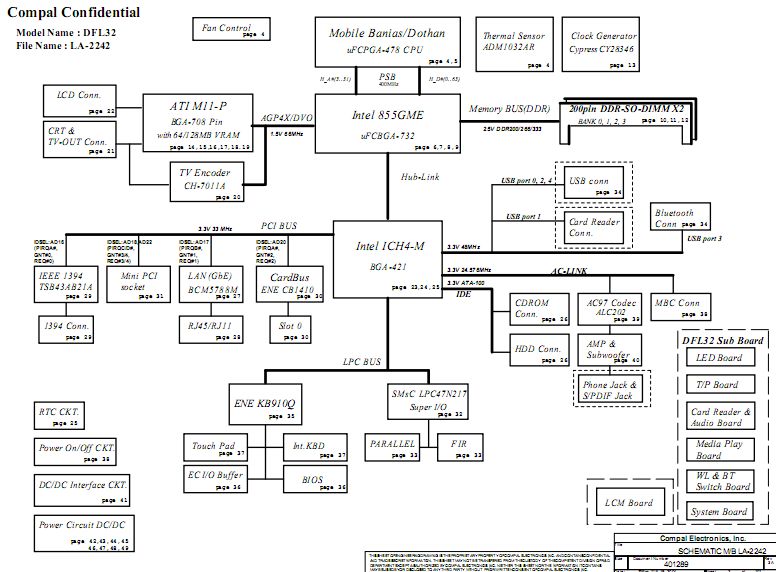

acer Aspire 2000 2010 2020 Block Diagram(DFL32 LA-2242):
