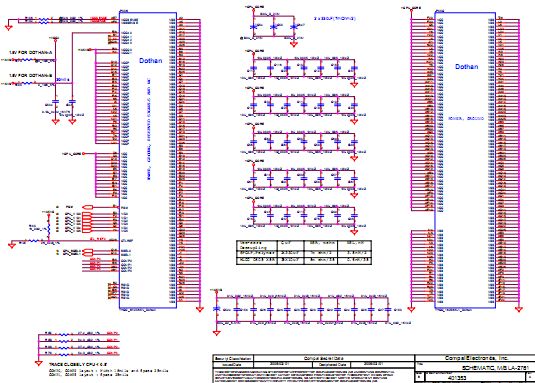

acer Aspire 9500 Notebook schematic diagram(HDQ70 LA-2781)

The document is PDF format, include:
The motherbord schematic diagram for acer Aspire 9500 Series notebook/laptop, HQD70/HDQ71 Schematics Document, Compal LA-2781. Intel Dothan Processor with 915PM/915GM + DDRII + ICH6M (With ATi M26-P).
CUP: Pentium-M(Dothan)
North Bridge: Intel 915PM/GM
South Bridge: Intel ICH6-M
OEM: Compal Electronics, Inc.
File Name: LA-2781
Model Name: HDQ70
Title: SCHEMATIC, M/B LA-2781
Total Pages: 50
File size: 1.01MB
Language: English
Sale Price: 7.5$

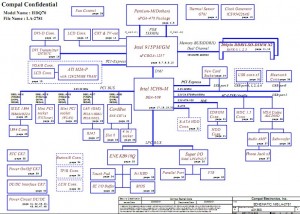

acer Aspire 9500 Block Diagram:
