acer TravelMate 7740/7740Z schematic, ZYD

The motherboard schematic for Acer TravelMate 7740, Acer TravelMate 7740Z laptop/notebook, Quanta ZYA Mainboard.
CPU: Arrandale(UMA)/Clarksfield (Discrete)
ATI GPU Madison/Park M2, Madison LP/PRO 1GB
Chipset: PCH Ibex Peak-M
OEM: Quanta Computer Inc.
Project: ZYD
Rev: 3B
Format: PDF
Total Pages: 50
File size: 1.43MB
Sale Price: 11.5$

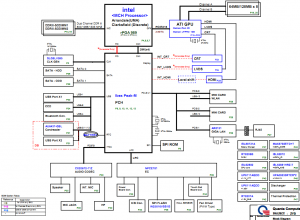

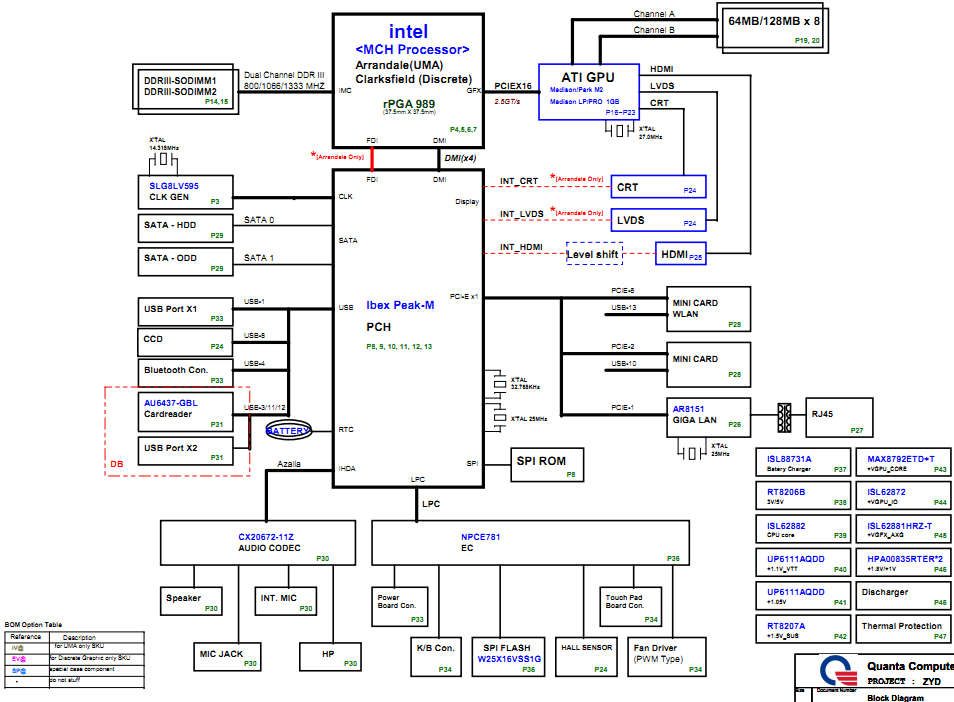

acer TravelMate 7740/7740Z Block Diagram:
