acer TravelMate 8573 schematic,10309 BAD50-HR

The motherboard schematic for Acer TravelMate 8573 laptop/notebook, Wistron BAD50-HR Mainboard, DIS/UMA/Muxless Schematics Document.
CPU: Intel Sandy Bridge FSB: 1066 MHz + DDR3
Discrete VGA Nvidia N12P GV/GS
Chipset: Intel PCH Cougar Point
Project code : 91.4NM01.001
Project Name: BAD50_HR
PCB No: 10309
Revision : SC
Document Number: BAD50-HR
Rev: SD
Format: PDF
Total Pages: 109
File size: 1.84MB
Sale Price: 11.5$

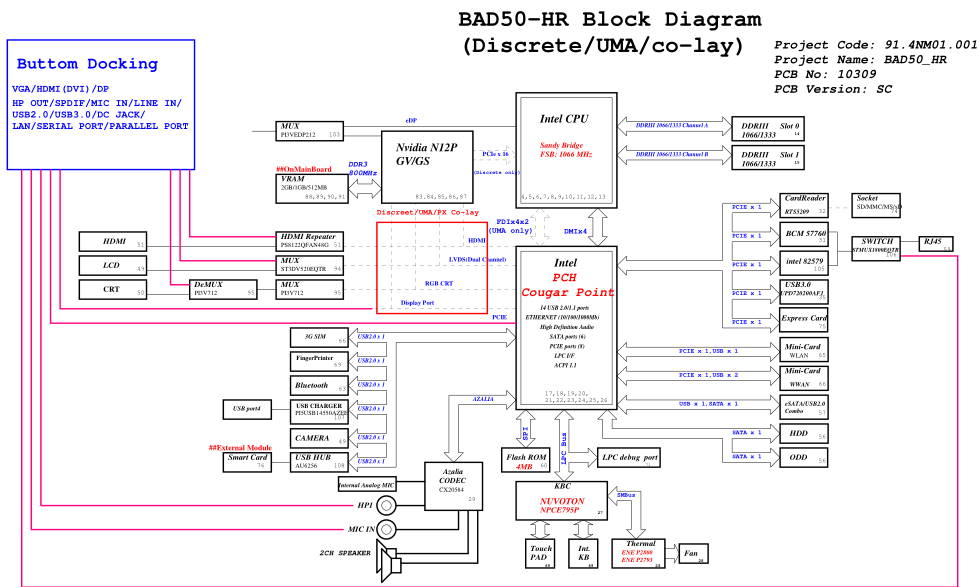

acer TravelMate 8573 Block Diagram:
