Asus U35JC schematic

The motherboard schematic for Asus U35JC laptop/notetbook.
CPU: CLARKFIELD/AUBURNDALE (DC & QC)
Chipset: PCH Ibex Peak-M
Project Name: U35JC
Revision: 1.0
Format: PDF
Total Pages: 99
File size: 1.65MB
Sale Price: 10.5$

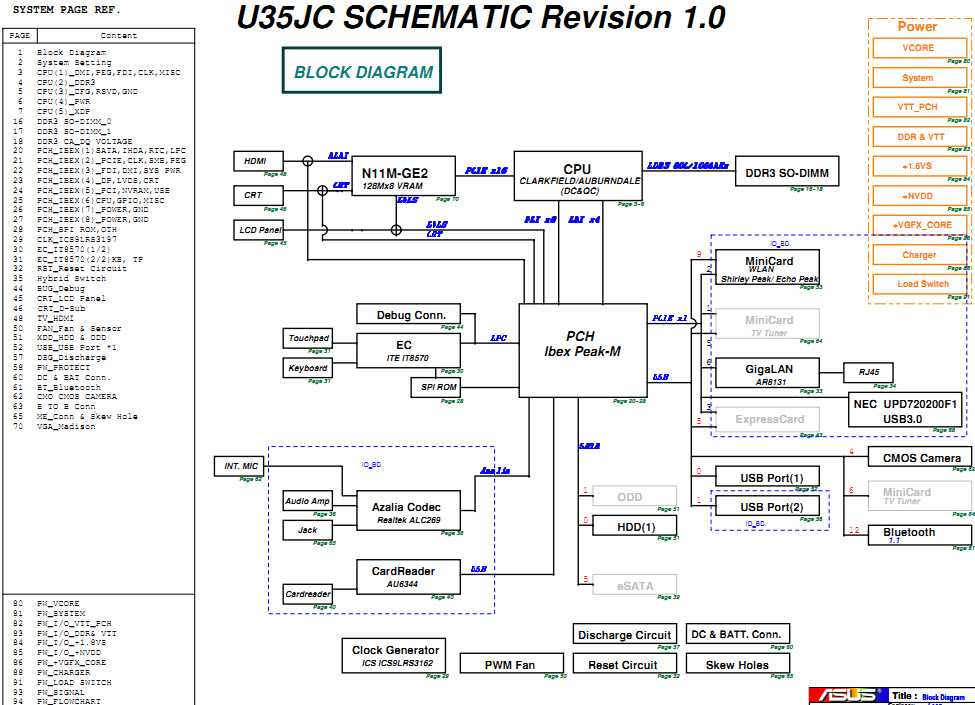

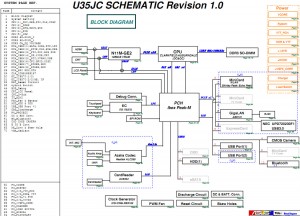

Asus U35JC Block Diagram:
