BenQ Joybook R41/R42 schematic, MITAC 8624

The motherboard schematic for BenQ Joybook R41, BenQ Joybook R42 notebook/laptop, MITAC 8624.
CPU: INTEL Yonah Celeron M
North Bridge: VIA VN890
South Bridge: VIA VT8237A
OEM: MITAC
MODEL : 8624 Revision R01
Project Code : G310
Product Code : 8107
PCB : 316810700001
PCBA : 411810700001
DB PCB : 316808100002
DB PCBA : 411808100005
Document Number: 8624
Rev: R01
Format: PDF
Total Pages: 29
File size: 1.00MB
Sale Price: 8.5$

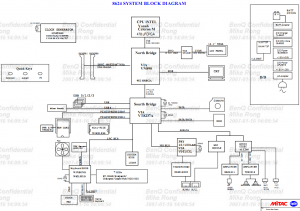

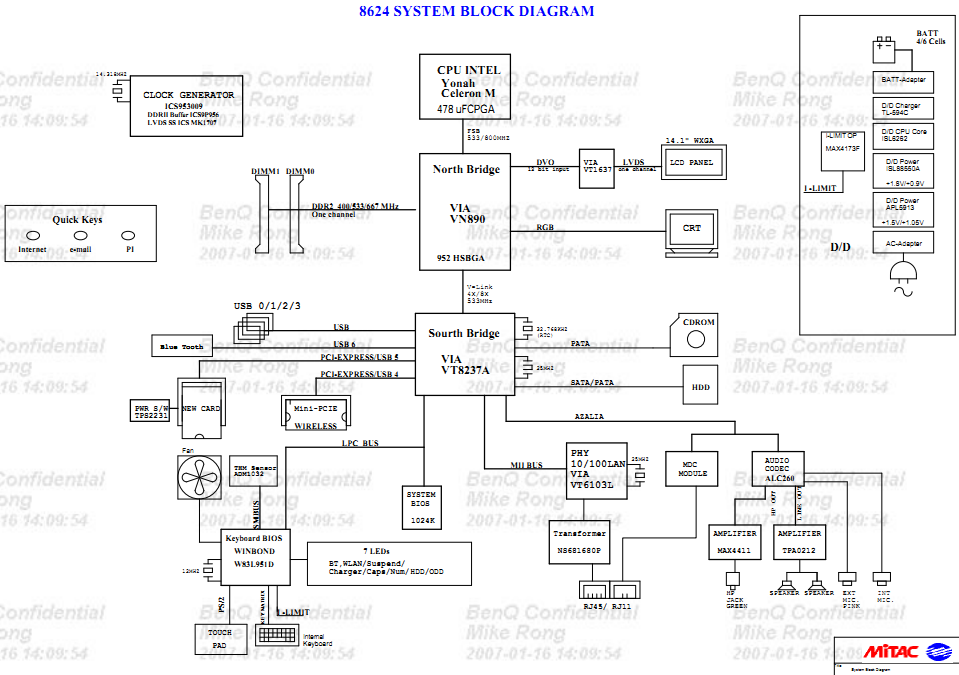

BenQ Joybook R41/R42 Block Diagram:
