Boardview File Viewer Software Download

BoardViewer 2.0.1.9 Beta

Boardview is a type of files containing information about printed circuit boards, their components, used signals, test points and more. These files may have following extensions: .tvw, .asc, .bdv, .brd, .bv, .cad, .cst, .gr, .f2b, .fz. and others.

Usually, different manufacturers use their own boardview formats which makes it difficult to view and work with these files. Each format requires installation of special software which is inconvenient.

BoardViewer system requirements:

  • Operating system Windows XP or newer versions
  • Installed Microsoft .Net Framework, version 4 and up
  • DirectX version 10 and up (highly recommended but not required)

BoardViewer is free to download and use.

Download Link (pCloud)

Allegro Free Physical Viewer 17.2

Allegro Free Physical Viewer For BINARY Boardview files (big *.brd files, 2015-to now)

Download Link 1 (Dropbox)
Download Link 2 (Google drive)
Download Link 3 (pCloud)

OpenBoardView (.bvr)

Linux SDL/ImGui edition software for viewing *.brd, *.bvr files, intended as a drop-in replacement for the “Test_Link” software and “Landrex”.

Free Use.

https://github.com/OpenBoardView/OpenBoardView

Windows

Download OpenBoardView v9.95.0

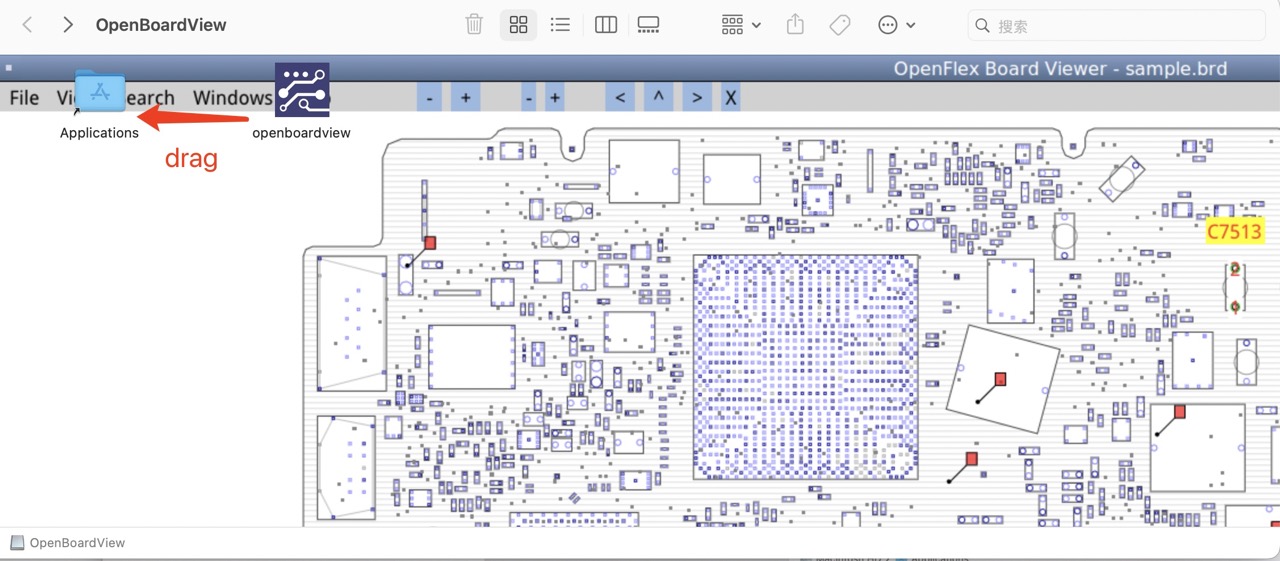

macOS

Download OpenBoardView v9.95.0

How to Open Apps from “Unidentified Developers” on Your Mac
