Compaq Presario CQ40 schematics(LA-4111P AMD)

The motherboard schematic diagram for HP Compaq Presario CQ40 laptop/notebook(AMD). Mobile AMD S1G2 CPU with ATI RS780M(NB) & SB700(SB) core logic, Compal LA-4111P.
CUP: AMD S1G2 CPU
North Bridge: ATI RS780M
South Bridge: ATI SB700
OEM: Compal Electronics, Inc.
Document Number: LA-4111P
Format: PDF
Total Pages: 46
Language: English
Sale Price: 16.5$

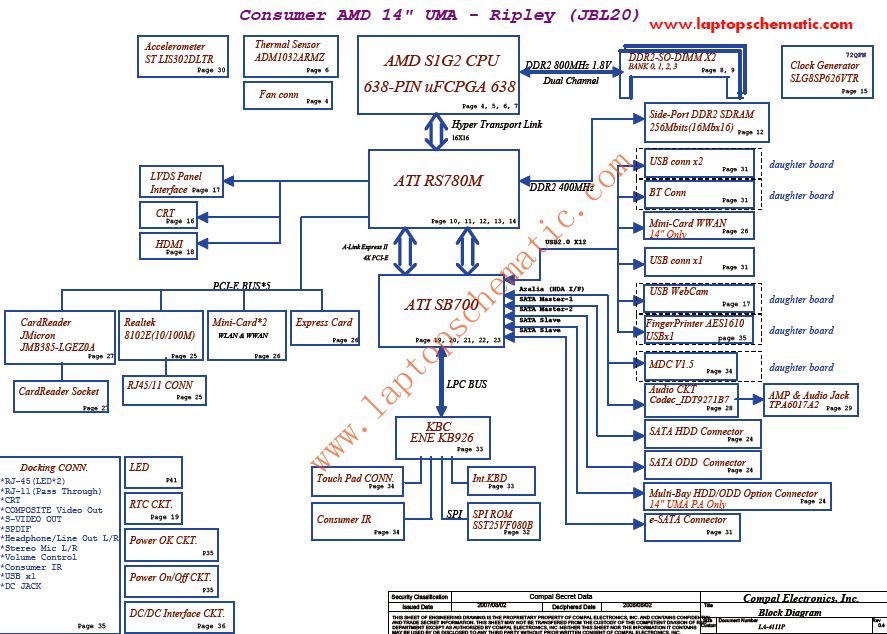

Compaq CQ40 Block Diagram(LA-4111P AMD):

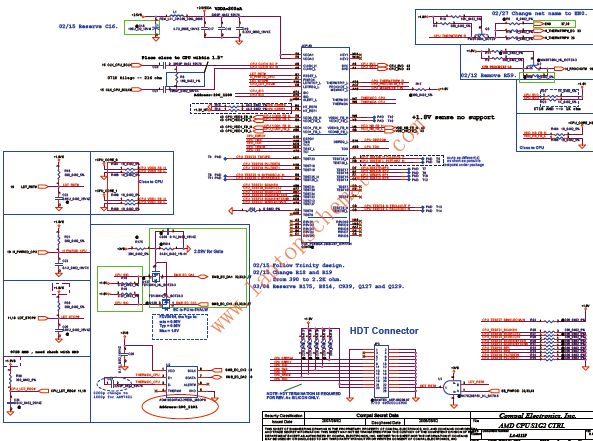

Compaq CQ40 laptop schematics(LA-4111P AMD):
