Dell G3 3579 3779 Schematic & Boardview, LA-F611P
The motherboard schematic and Boardview (.CAD) for Dell G3 3579, Dell G3 3779 laptop/notebook, COFFEE LAKE H, N17P-G0/G1, Loki-G 15/17, Compal LA-F611P.
CPU: Intel CFL-Lake-H
OEM: Compal Electronics, Inc.
MODEL NAME: Loki-G 15/17
MB PCB PN: DAA000FC010
PWR/B PCB PN: DA4002L3010
IO/B PCB PN: DA6001XF010
Document Number: LA-E331P
Sale Price: 12.5$ (include Boardview)

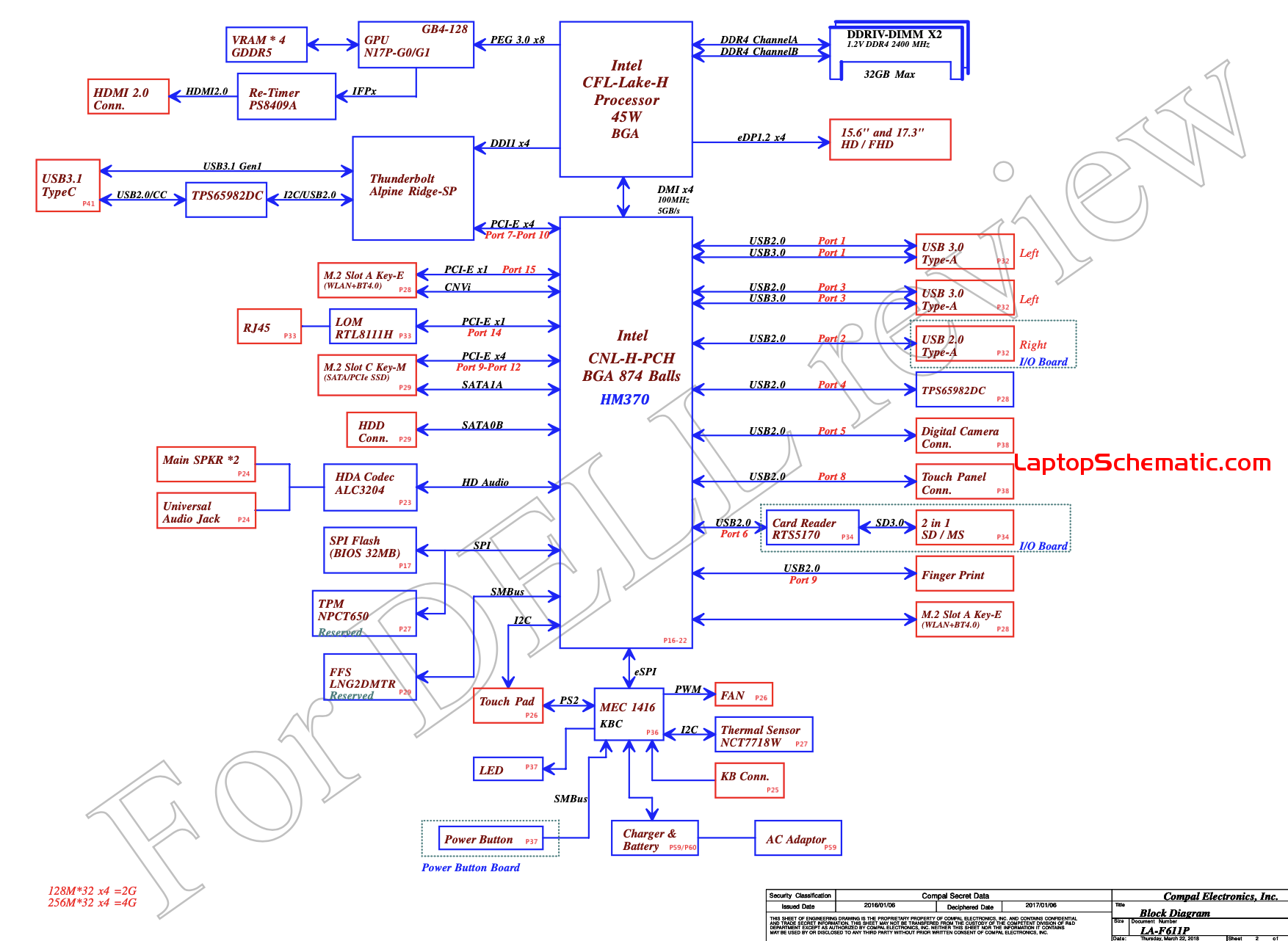

Dell G3 3579 3779 LA-F611P Block Diagram:
Dell G3 3579 3779 LA-F611P Block Diagram

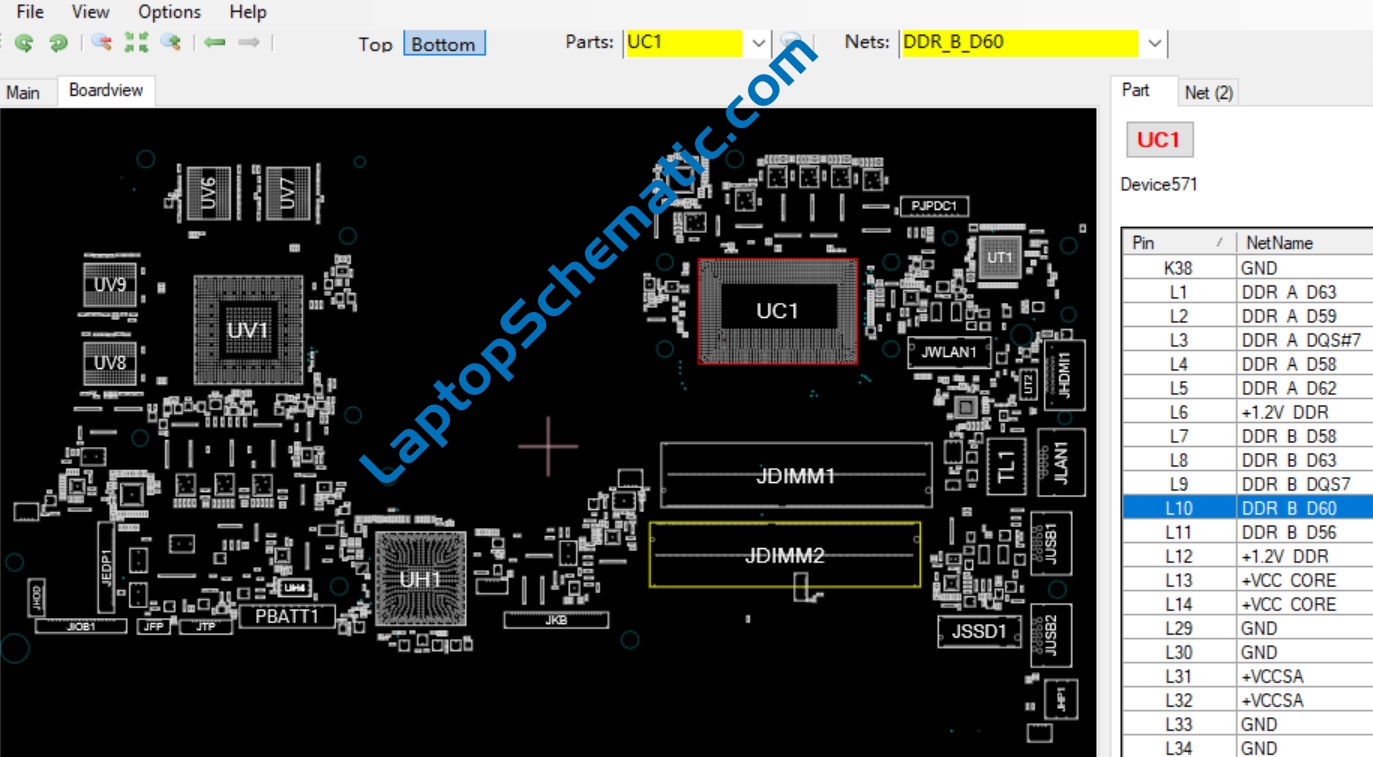

Dell G3 3579 3779 LA-F611P Boardview:

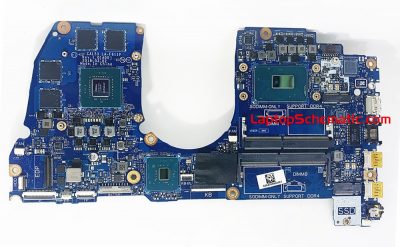

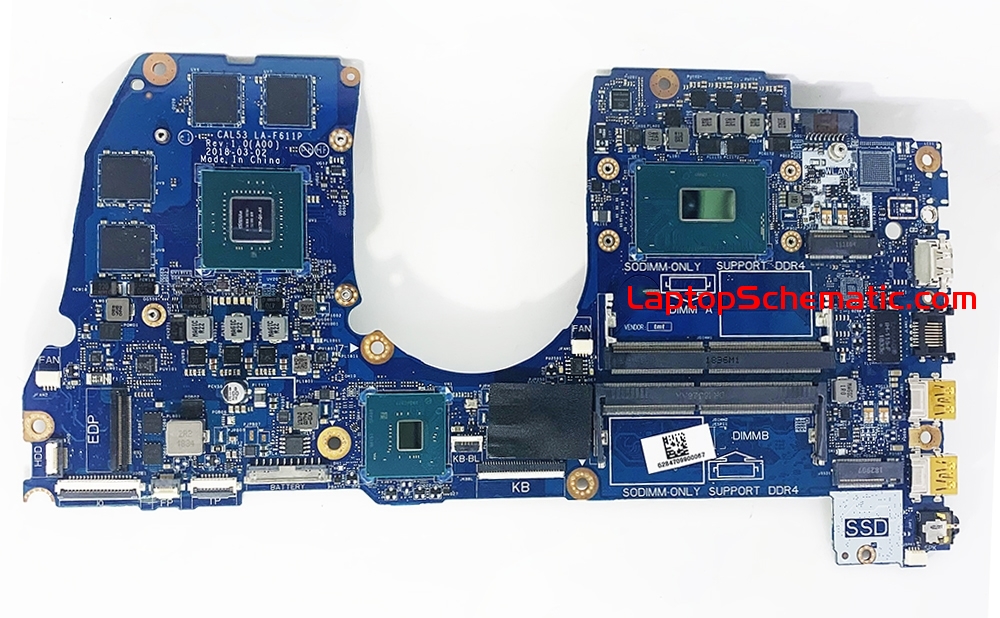

Dell G3 3579 3779 LA-F611P Motherboard Photo:
