Dell Inspiron 3480 3580 3583 3780 Vostro 3480 3580 3583 Schematic & Boardview LA-G711P EDI73

Schematic (*.pdf), Boardview (*.cad), Boardview (*.brd Allegro), BOM file (.xls / list of componets) for Dell Inspiron 3480 3580 3583 3780 Vostro 3480 3580 3583 laptop, LA-G711P EDI73 Motherboard.
CPU: Intel WhiskeyLake-U/CannonLake-U DDR4
GPU: DIS (AMD R520/R530 – R17M-M1-30/R17M-M2-50)
EC: MEC1416-NU
OEM: Compal LA-G711P
Format: pdf, brd, cad, xls
Searchable PDF file, No watermark of website
Sale Price: 16.5$

Boardview Software (Download)

  • Open Boardview(.brd) file with Allegro Free Physical Viewer
  • Open Boardview(.cad) file with BoardViewer

File list:

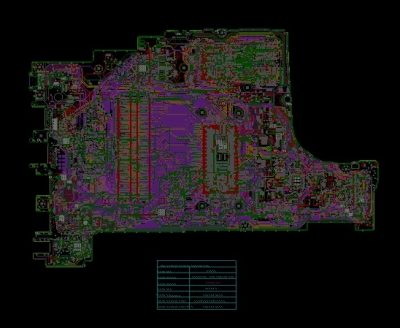

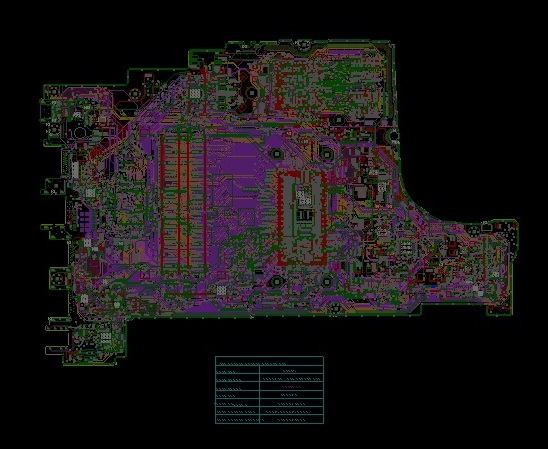

LA-G711P_R10-1109.brd.7z
LA-G711P TOP.pdf

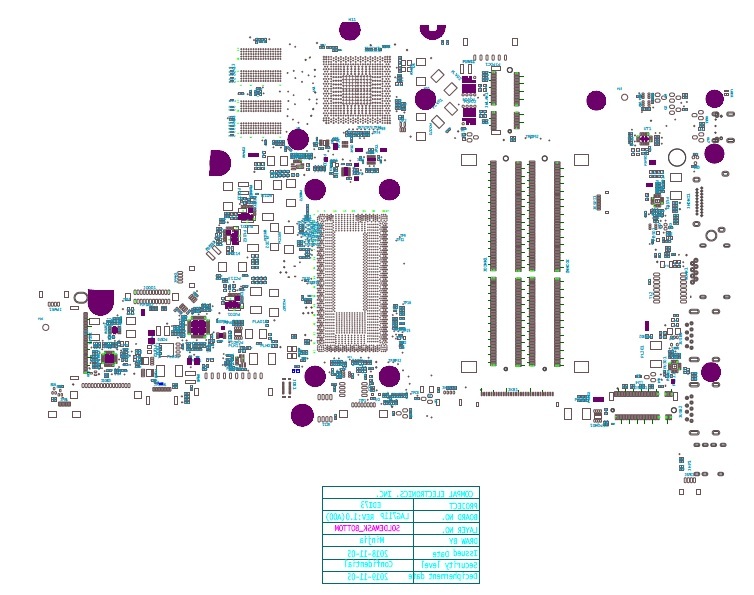

LA-G711P BOTTOM.pdf

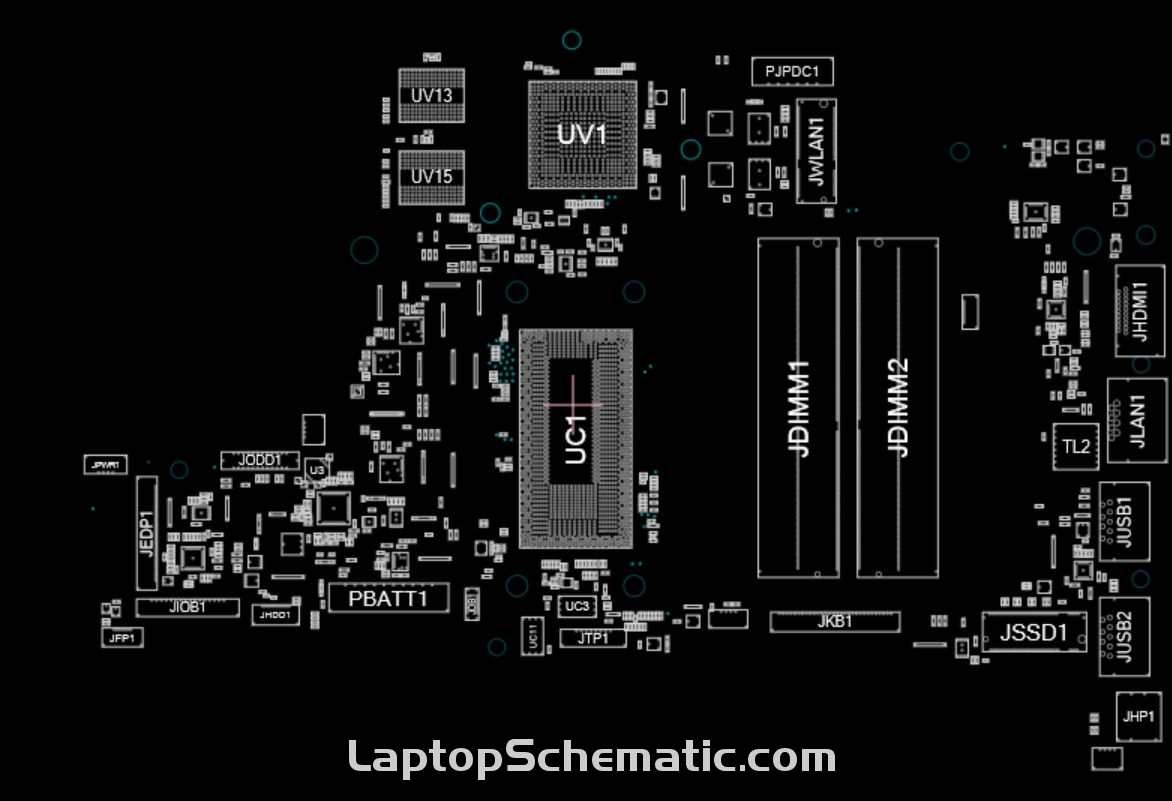

LA-G711P_R10-1109.cad
LA-G711P_R10_1112_Service.pdf
LA-G711P_R10_1112_ServiceDell Inspiron 3480 3580 3583 3780 Vostro 3480 3580 3583 Schematic & Boardview LA-G711P EDI73LA-G711P_R10-1109.cadDell Inspiron 3480 3580 3583 3780 Vostro 3480 3580 3583 Schematic & Boardview LA-G711P EDI73
