Dell Latitude 3410 3510 (DIS GPU) 19709 19746 19775 19812 Schematic & Boardview
The motherboard schematic and Boardview (*.gr) for Dell Latitude 3410 3510 (DIS) laptop/notebook, Wistron Mockingbird_CML DIS 19709-1 19746-1 19775-1 19812-1 Schematic.
CPU/RAM: Intel CometLake-U / DDR4
GPU: DIS (Vidia N17S) + GDDR5
EC: MEC1515H-D0-I
Model: Dell Latitude 3410 (DIS GPU) , Dell Latitude 3510 (DIS GPU)
Motherboard: Wistron Mockingbird_CML DIS 19709 19746 19775 19812
Format: PDF (Searchable), GR
Language: English
Sale Price: 13.5$ (include Boardview)
Original document, no irrelevant watermark.
- Open Boardview(.gr) file with BoardViewer (Download)

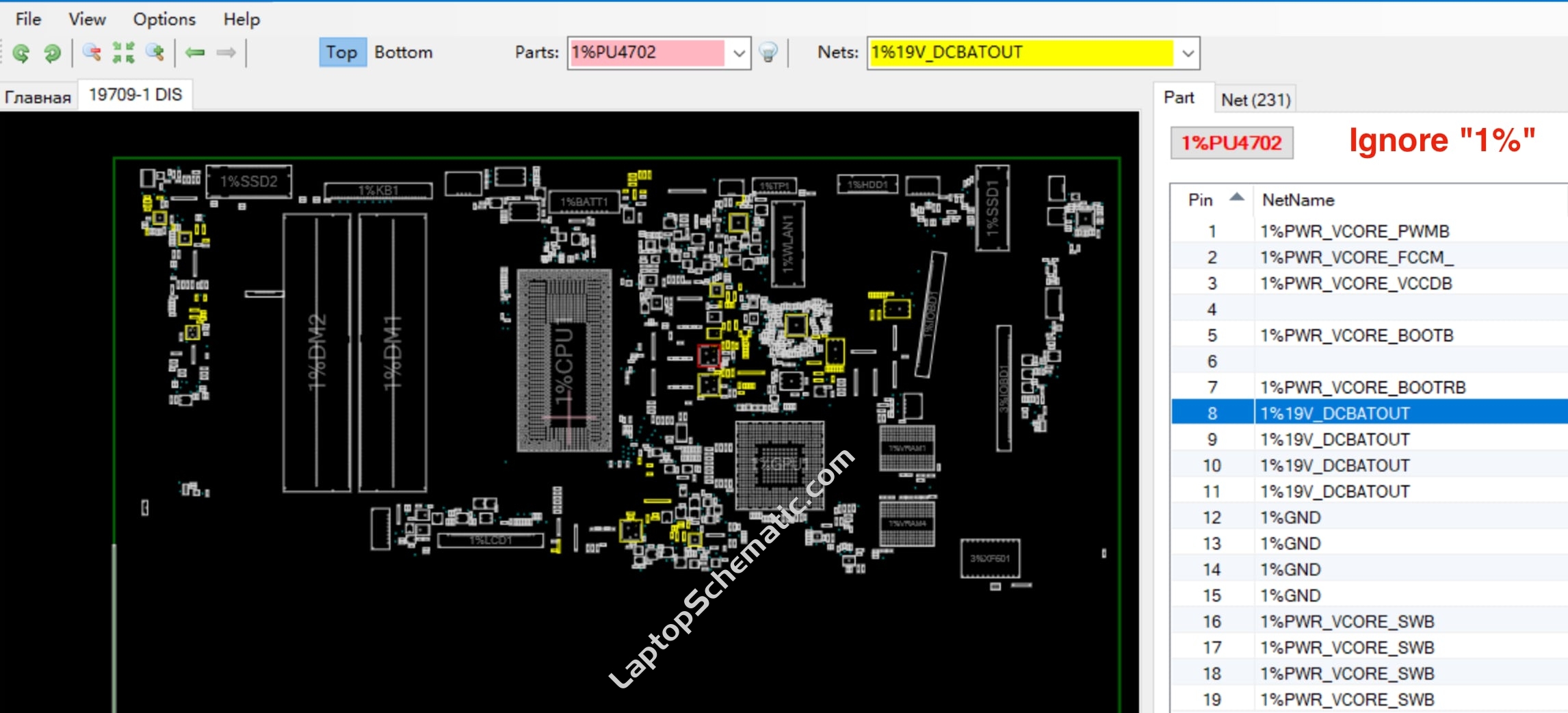

19709-1-DIS-Boardview (Ignore "1%")

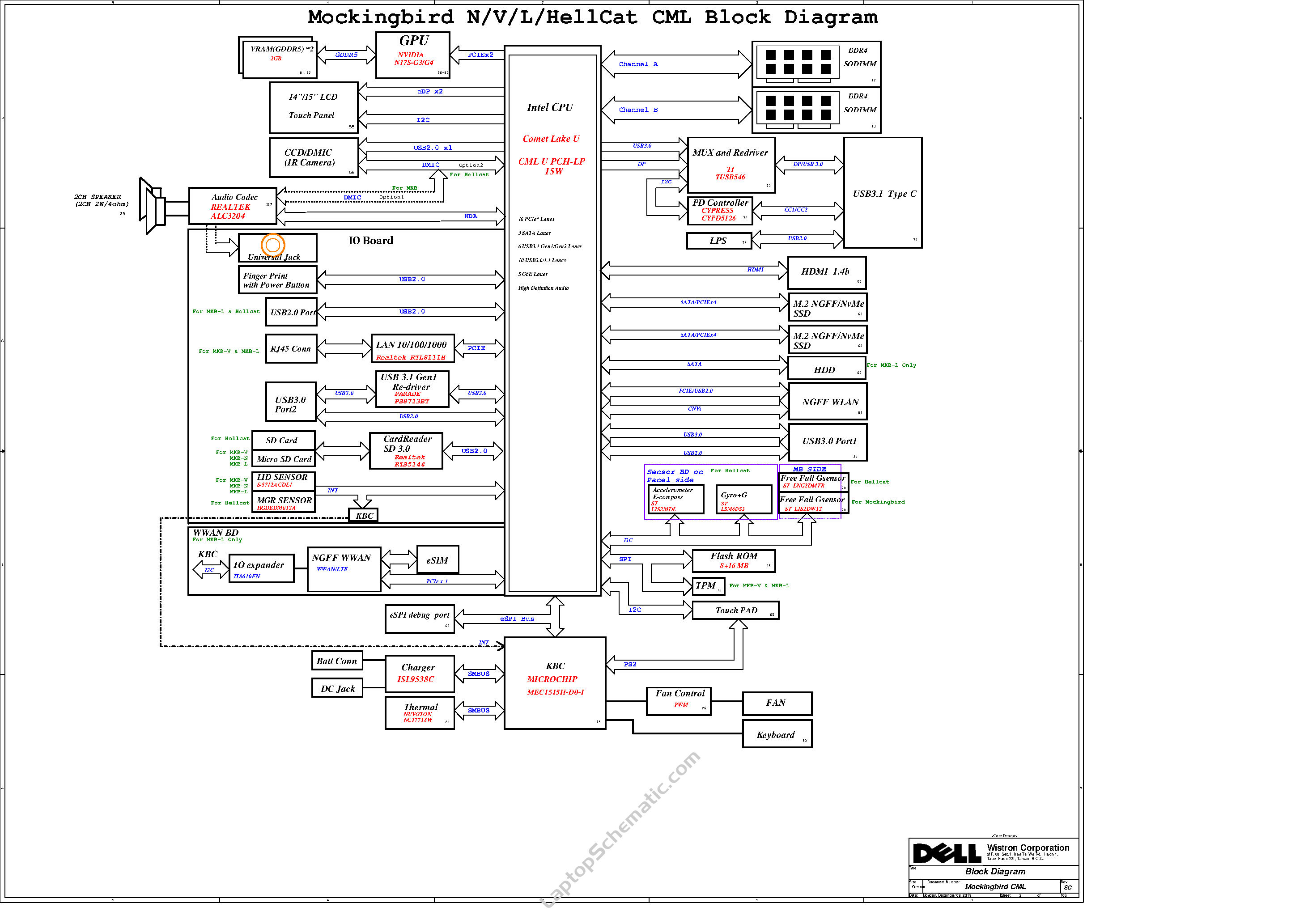

MOCKINGBIRD-L CML DIS 19709-1 19746-1 19775-1 19812-1
