Dell Latitude 3480 3580 3588 Schematic, Taos 16852-1 D5FVH
The motherboard schematic diagram for Dell Latitude 3480, Dell Latitude 3580, Dell Latitude 3588 Schematic laptop/notebook, Taos Schematics, Skylake/Kabylake -U, Taos 16852-1 D5FVH Motherboard.
CPU: Intel Skylake/Kabylake -U
OEM: Wistron
Project code:
Taos14 –>4PD09Z010001
Taos15 –>4PD0A1010001
PCB P/N: 16852
Document Number: Taos KBL-U
Total Sheet: 105
File size: 1.50MB
Format: PDF (Searchable PDF file, No Watermark)
Language: English
Sale Price: 16.5$

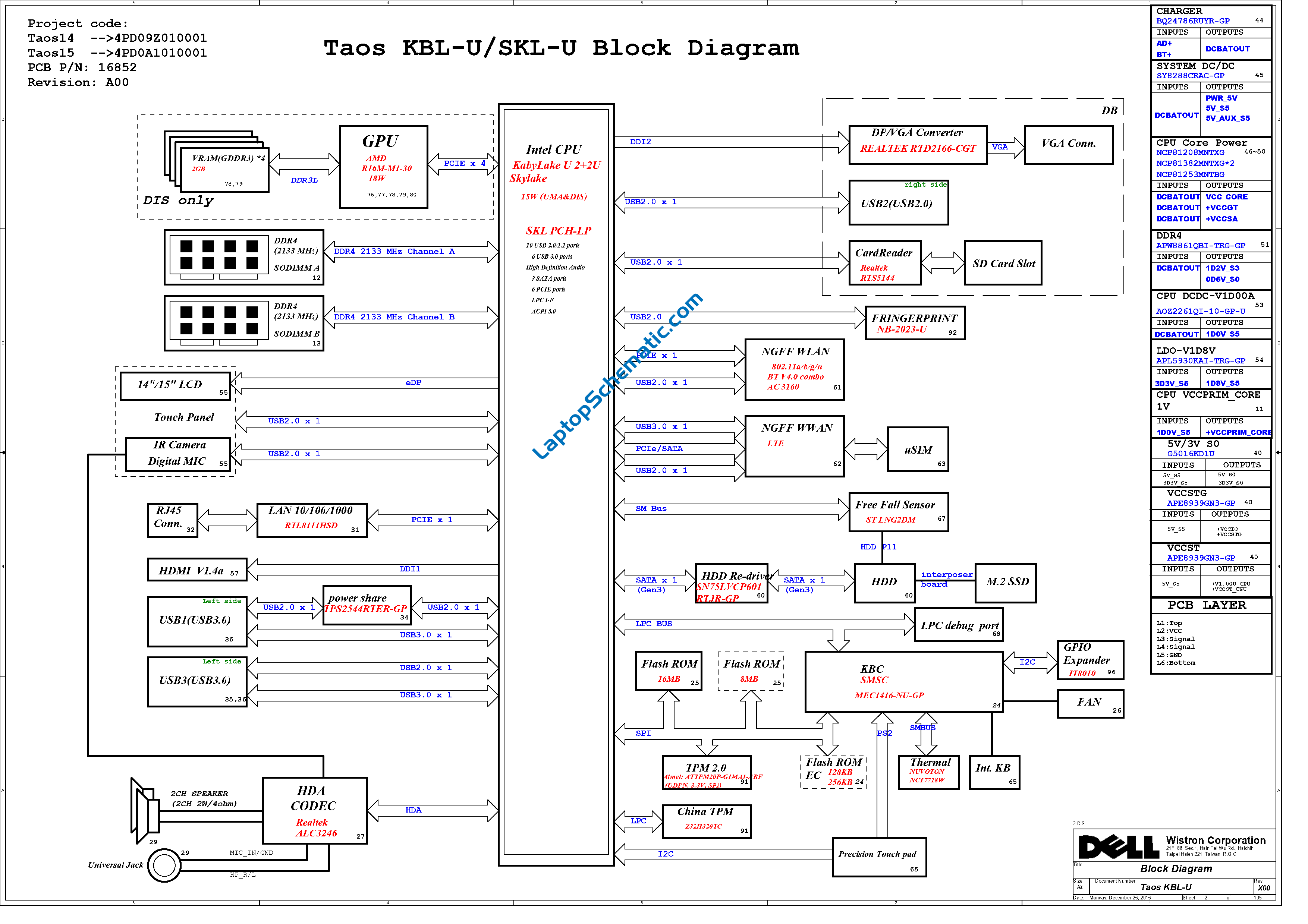

Dell Latitude 3480 3580 3588 Taos 16852-1 D5FVH Block Diagram:

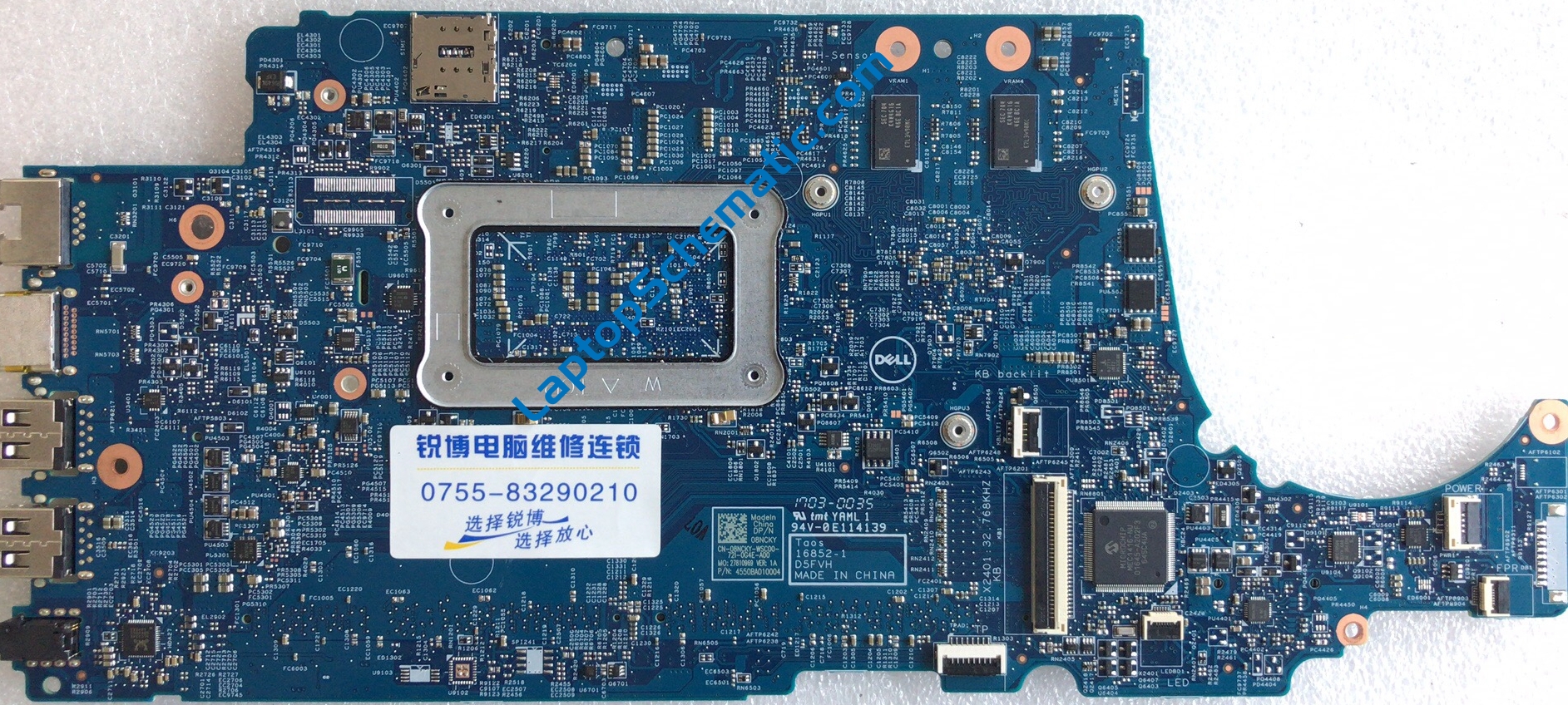

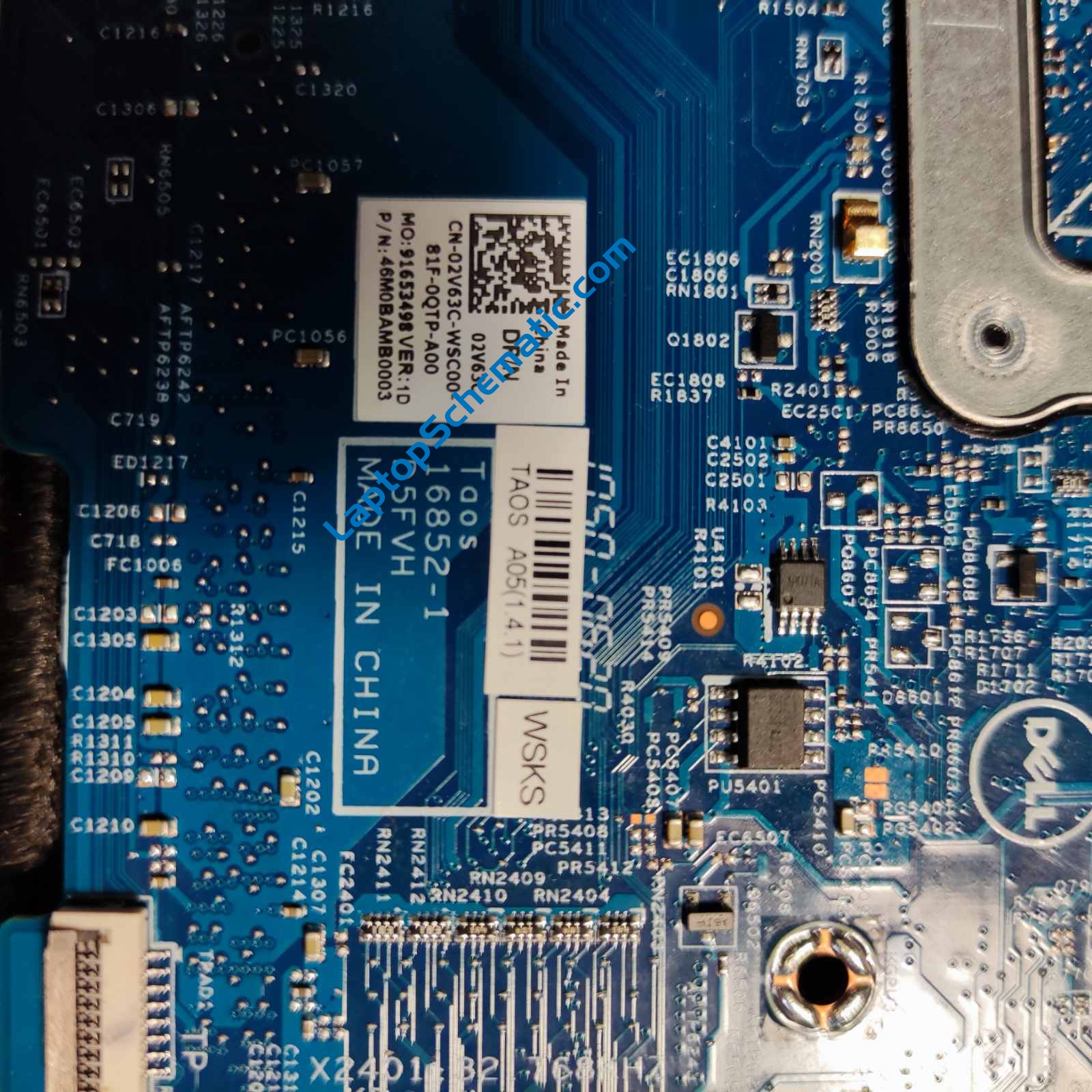

Dell Latitude 3480 3580 3588 Taos 16852-1 D5FVH Motherboard:
