Dell Latitude D531 schematic,JX6 MGD-INTEGRATED
The motherboard schematic for Dell Latitude D531 laptop/notebook, Quanta JX6 Mainboard.
Quanta Project Name: JX6
Dell Project Name: MGD Lite
CPU: AMD S1 Turion 64 Rev.F Dual-Core/Dual-Core 35W / Single-Core 25W/Sempron Rev.F Single-Core
North Bridge: RS690
South Bridge: SB600
OEM: Quanta Computer
Document Number: MGD
Rev: 1A
Format: PDF
Total Pages: 89
Sale Price: 8.5$

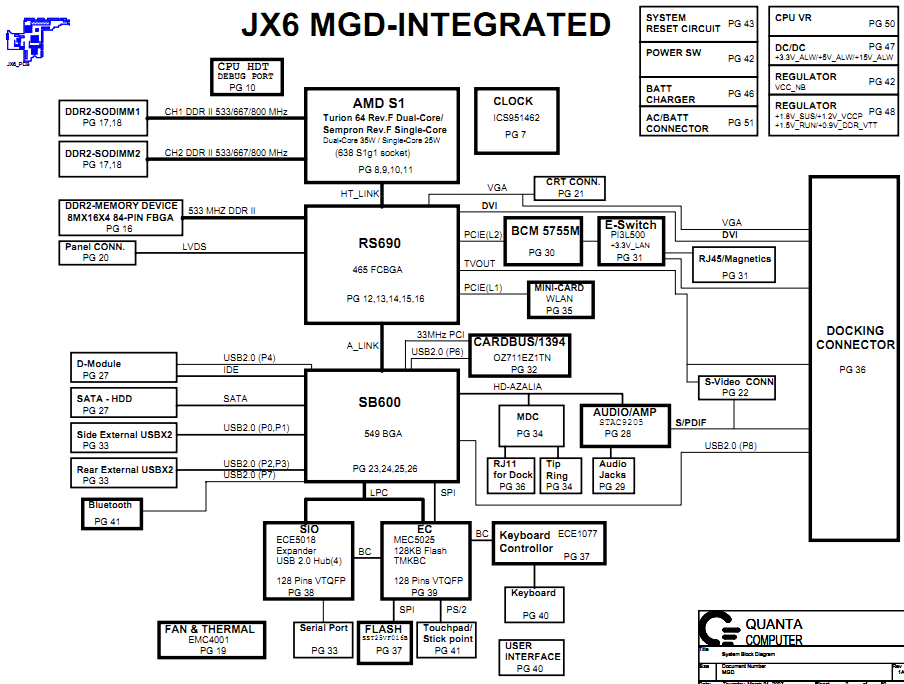

Dell Latitude D531 Block Diagram:
Dell Latitude D531 Block Diagram
